Marvel Series 15A CNC Horizontal Band Saw

 Pre Owned  Marvel Series 15A CNC Horizontal Band Saw
Serial No

Capacity:                                       20" x 16 " Flats
Band Wheels:
Blade Size:                                         1.25" x 15’6”
Work Height:                                      30"
Blade Speeds Approx.:                            55 - 400 FPM

EQUIPPED WITH:

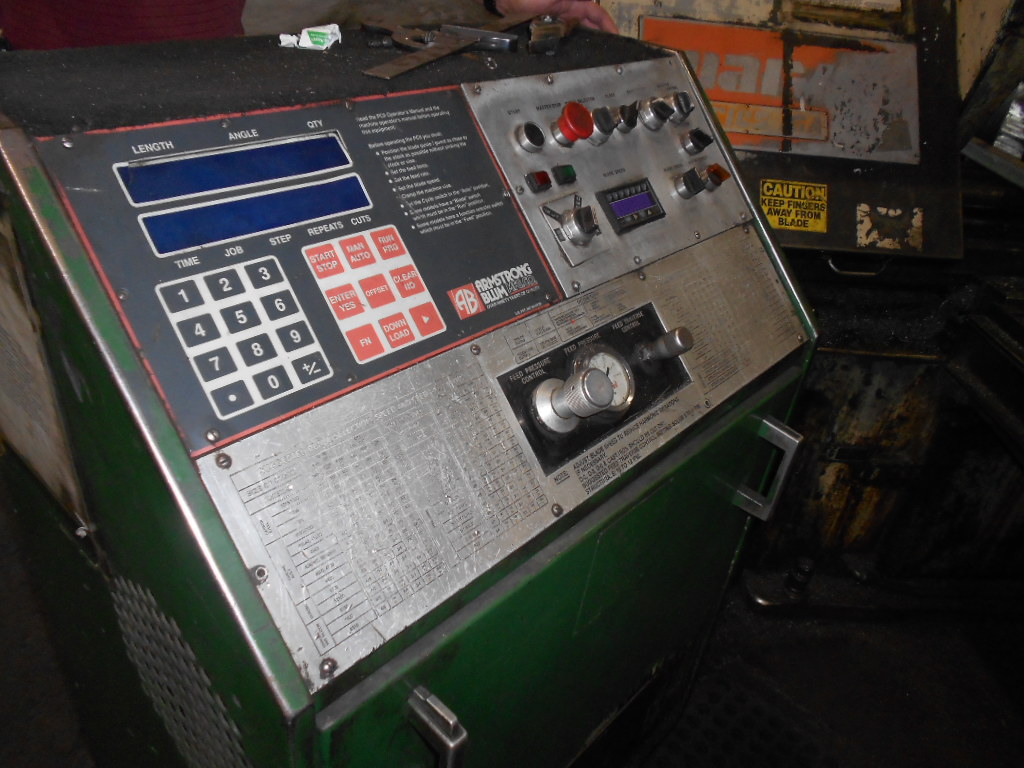

Marvel PLC CNC Control

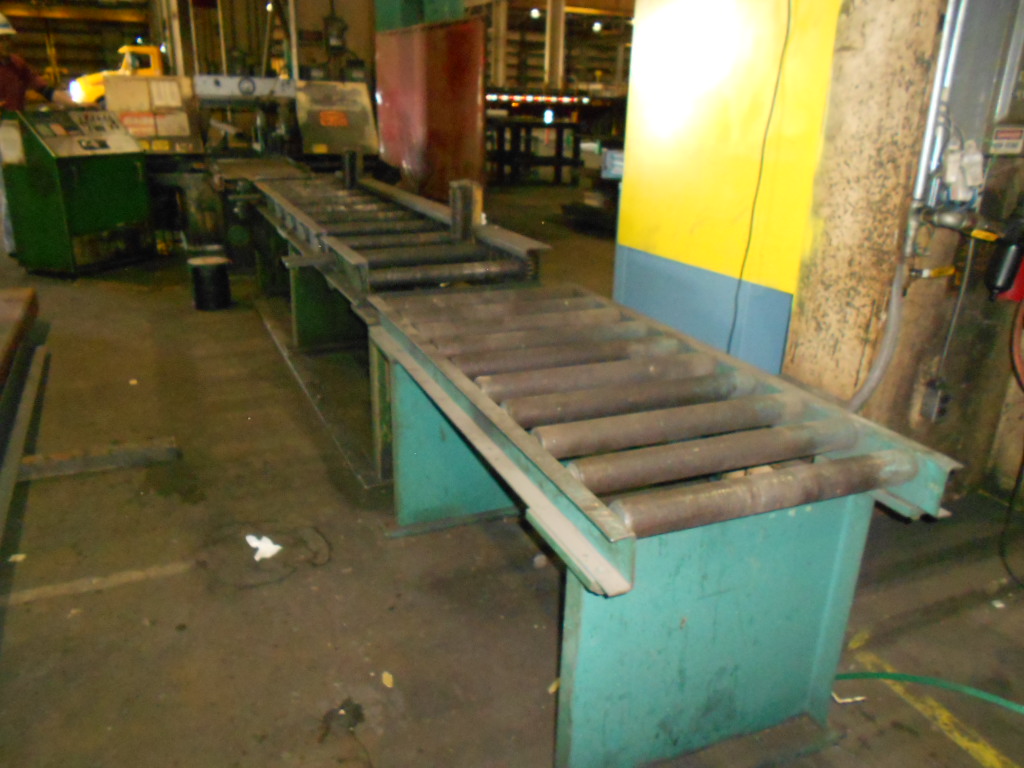

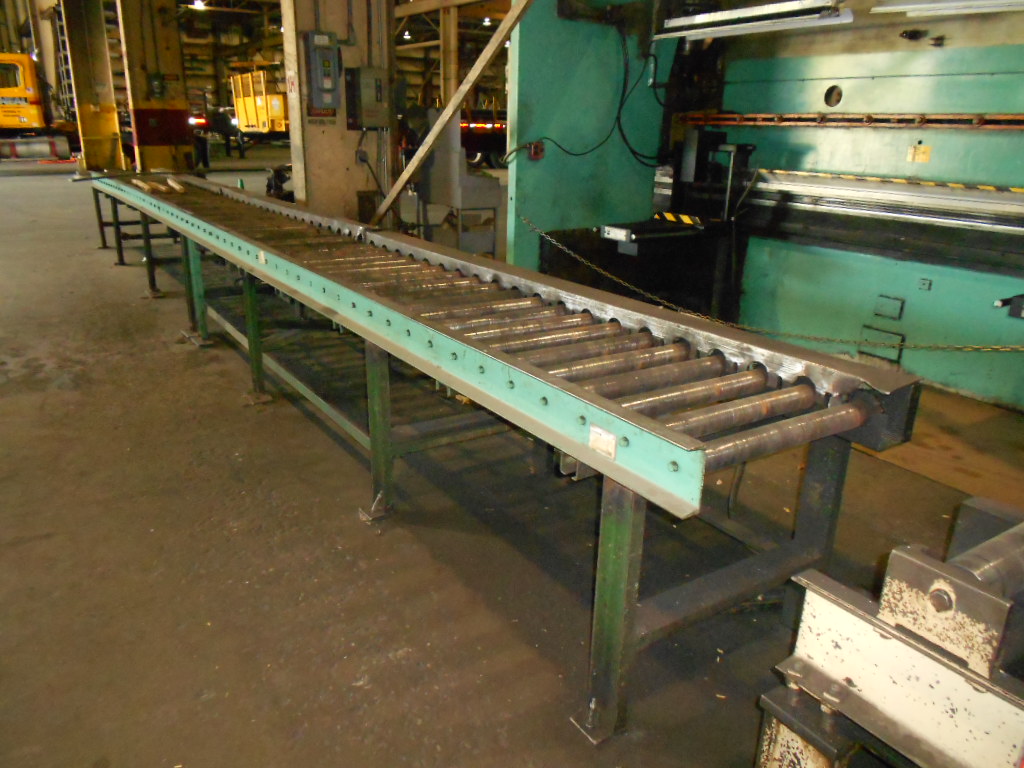

10’  Shuttle Infeed Conveyor
Out of Stock Sensor
Automatic Shuttle Type Bar Feed w/16" Stroke
Clamp & Feed Hydraulic Vises
 Hydraulic Head Elevation
Chip Conveyor
Index Length Control w/Digital Readout
 Centralized Control w/Push-Pull
 Buttons For Hydraulic Start-Stop;
 Band Start-Stop; Auto Cycle Start-Stop;
 Selector Switches For Index
 Reverse-Hold-Forward; Index Vise
Open-Automatic-Clamp; Fixed Vise
 Automatic-Open-Clamp & Operation
 Manual-Automatic
 Joystick For Saw Head Up-Hold;
 Automatic-Down
 Coolant Pump & Motor w/Control For On-Off
 Band Speed Fast-Hold-Slow &
 Feed Force Control
 Feed Force In PSI
 Power Driven Band Chip Removal Brush
 1/3 HP 3450 RPM Coolant Pump Motor
 3 HP 1800 RPM 230/460/3/60 Hydraulic Pump Motor
 7.5 HP 1800 RPM 230/460/3/60 Main Motor


Weight approx.                     7500 Lbs
