Do All Model TF 2021-M Tilt Frame Vertical Band Saw

PrintEmail
Do All Model TF 2021-M Tilt Frame Vertical Band Saw
doall tf 2021m  01
doall tf 2021m  08
doall tf 2021m  03
doall tf 2021m  04
doall tf 2021m  06
doall tf 2021m  07
Description

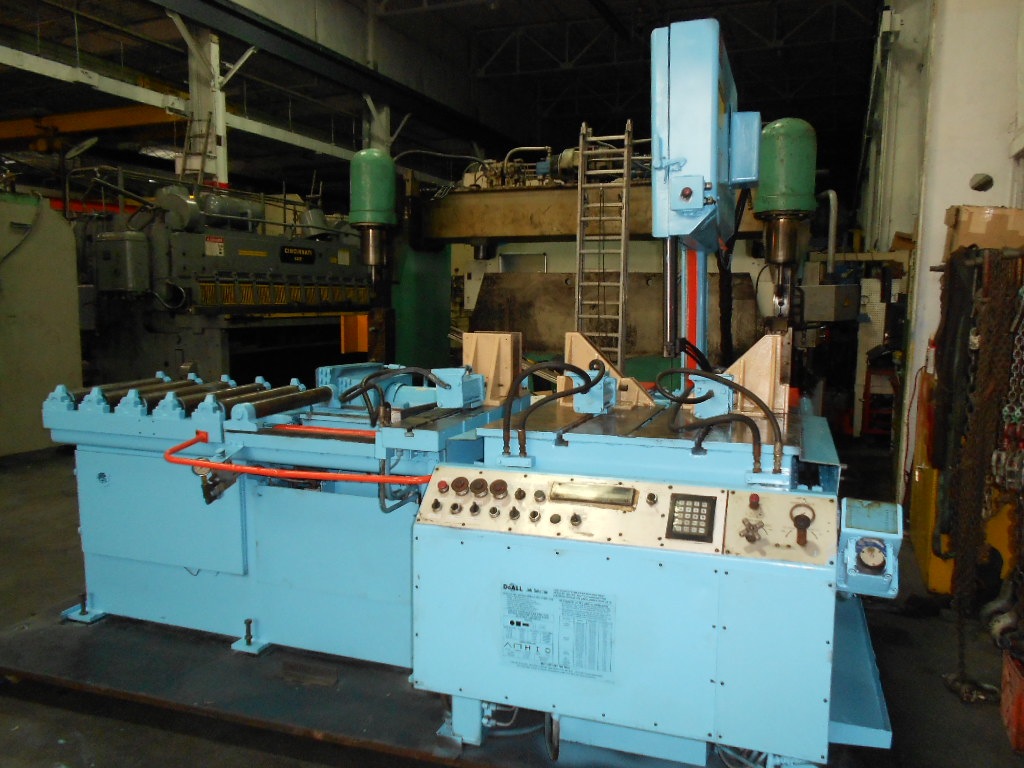

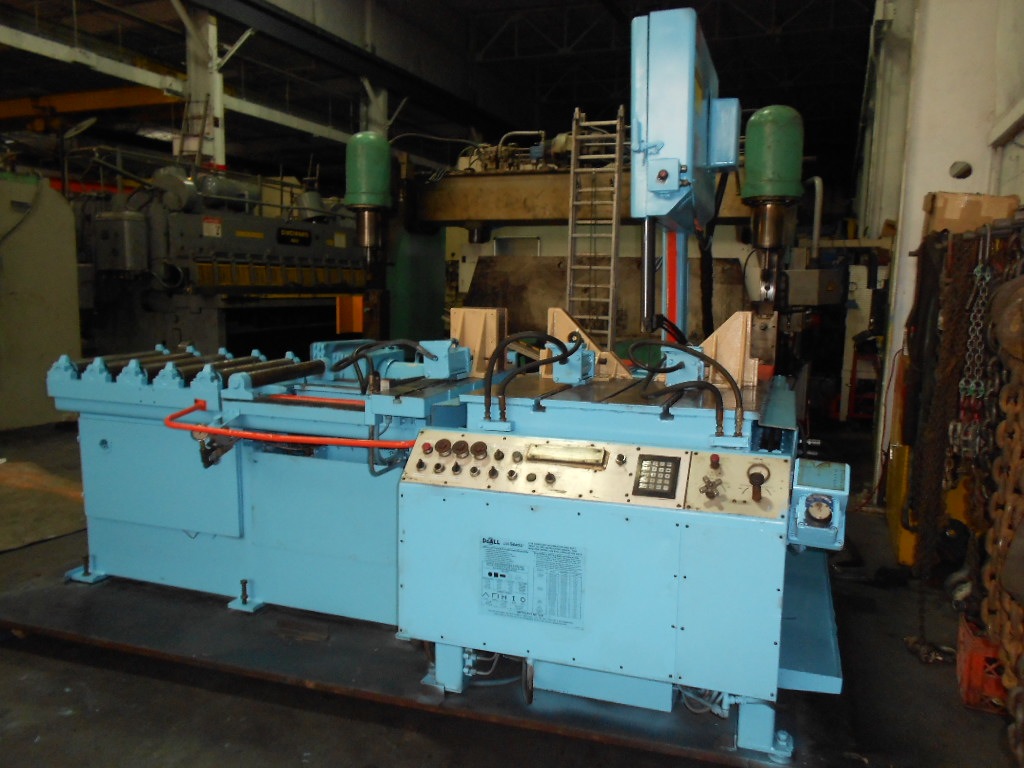

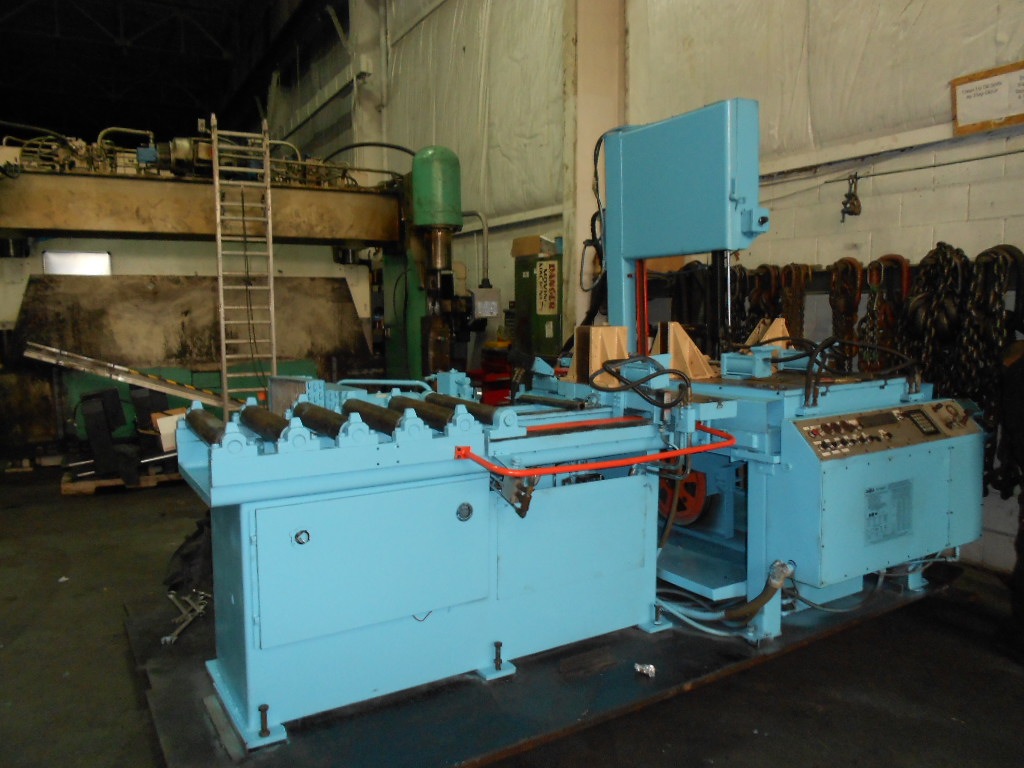

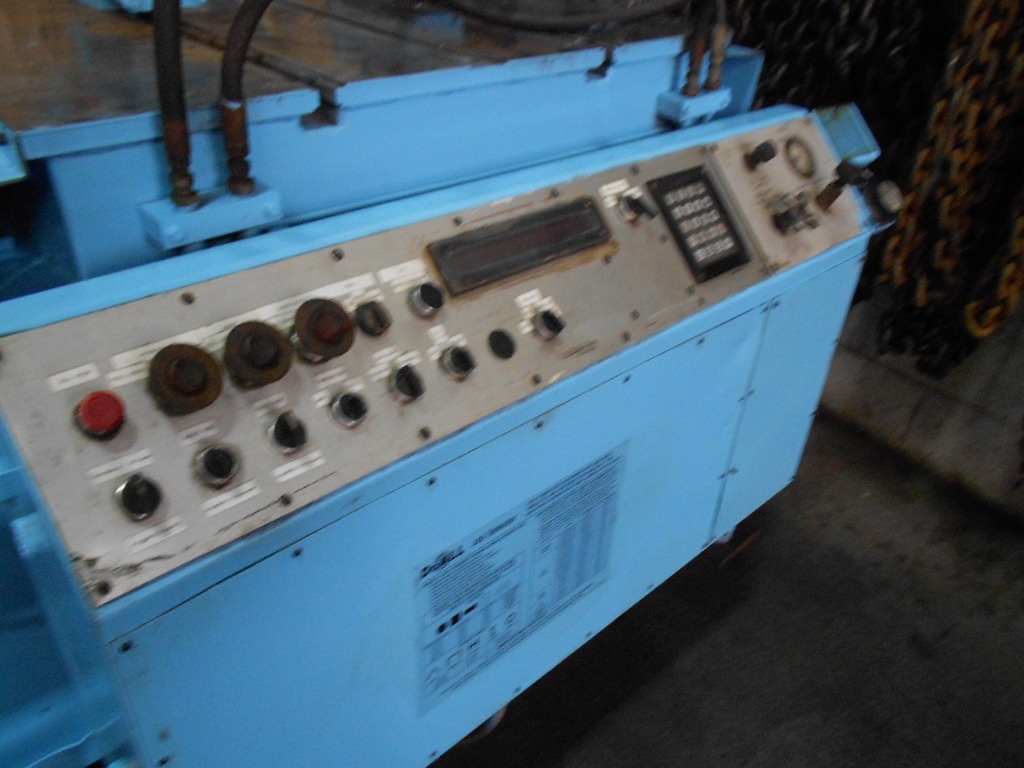

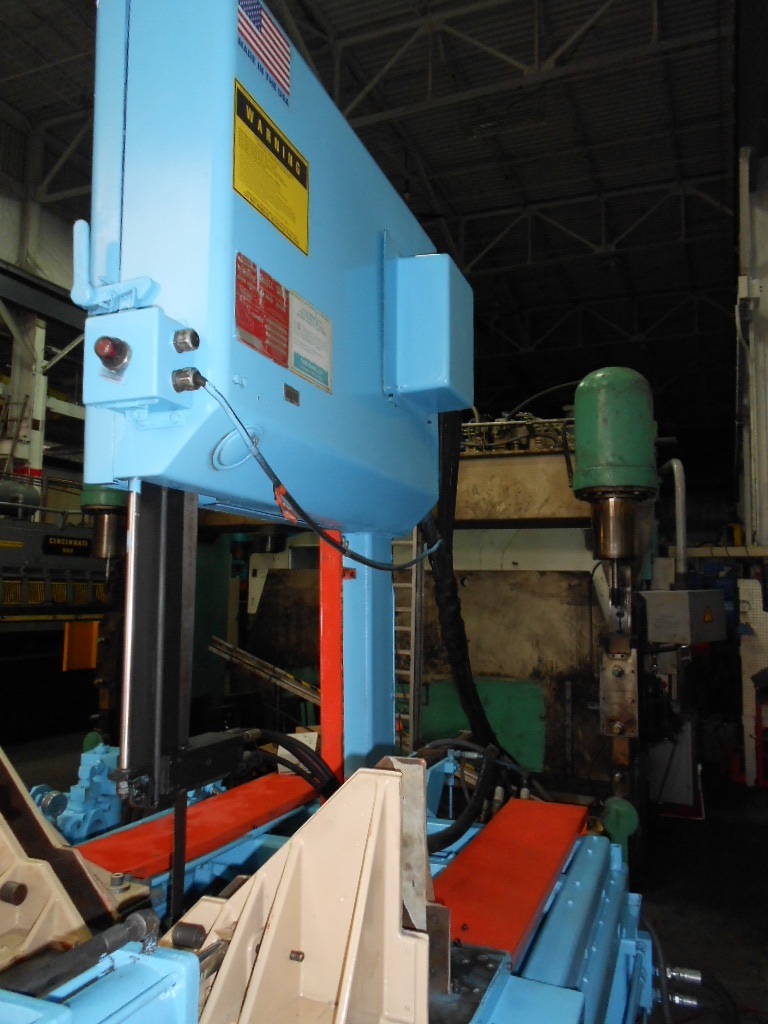

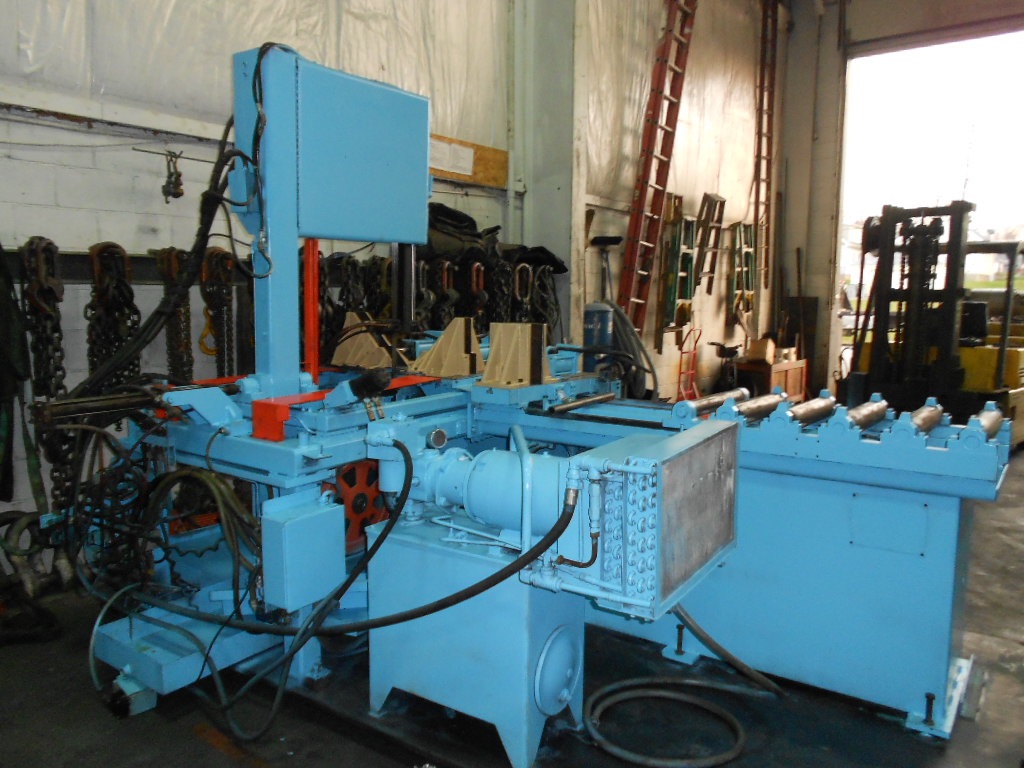

 (1) Pre Owned 1998 Do All Model TF 2021-M Tilt Frame Vertical Band Saw
Serial Number 460-98188

GENERAL SPECIFICATIONS
Capacity                        20” X 21”
Capacity at 45 Degrees                 14” X 20”
Blade Speeds                     50 to 300 FPM
Blade Size                     192” X 1 1/4”
Head Feed Rate                     0-12 IPM
Main Motor Horsepower                 10

EQUIPPED WITH
Hydraulic Head Tilt
Automatic Belt Tension
Coolant System
Hydraulic Feed
Replaceable Wear Plates
Infeed Shuttle

Approximate Overall Dimension         110” X 57” X 93” H
Approximate Overall Weight         5500 Lbs
