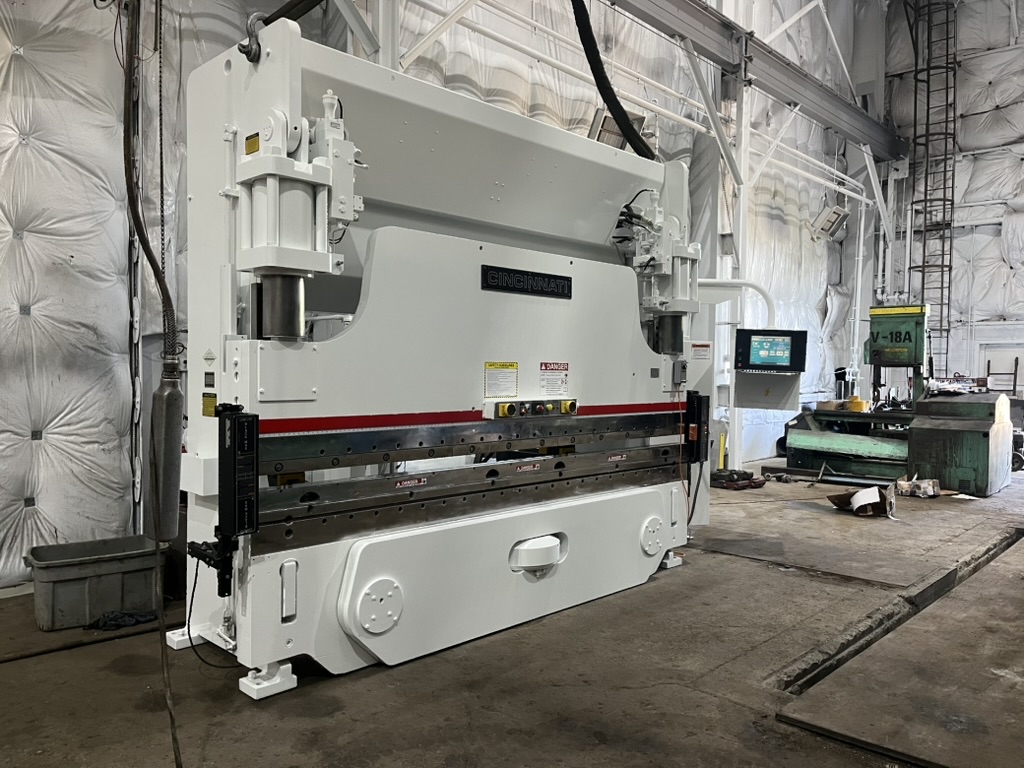

175 Ton X 12’ Cincinnati 175AF10  Autoform CNC Hydraulic Press Brake

GENERAL SPECIFICATIONS

Capacity 175 TONS

Overall Length of Bed & Ram 12’

Distance Between Housings 10’ 6 1/2”

Stroke 10”

Open Height 17”

Closed Height 7”

Throat Clearance 12”

Speed

Approach 230 Inch/Minute

Form 1 to 45 Inch/Minute

Return 1 to 250 Inch/Minute

Width At Top Of Bed 5 1/2”

Main Motor Horsepower 25 HP   460/3/60

EQUIPPED WITH

Cincinnati Autoform  PC HMI Control

Industrial PC Based Control

15.1” TFT Touchscreen Display

Tool Library

CAD Design Software

Dynamic Thickness Compensation

Adaptive Control Mode

24” Back Gauge ( X1, X2)

Link Black Max Light Curtains

AutoCrown Deflection Compensation

Precision Ram Leveling With Dual Linear Glass Scale Encoders

Off Load Center Compensation

Variable Volume Load  Sensing Pump And Servo Hydraulic System

3-Position Electric Foot Switch

Presence Sensing Interface

Control Mounted Palm Button Station

Manuals

Interlocked Construction

Approximate Overall Weight 32510 Lbs

Approximate Overall Dimensions 177” L  X  72” W  X ’123” H
