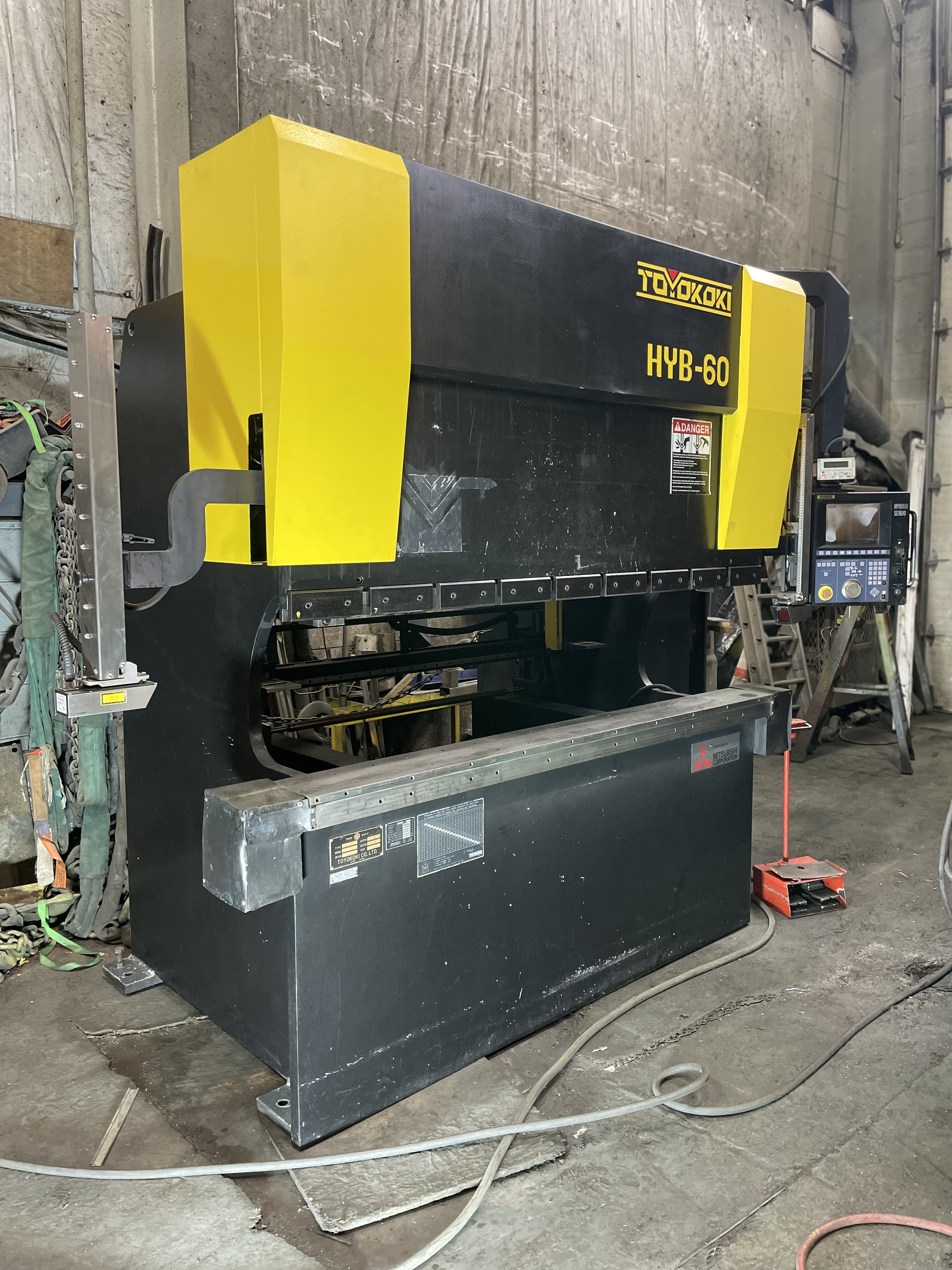

72 Ton X 6' Toyokoki HYB-60-20 CNC Hydraulic Press Brake

Pre Owned Toyokoki HYB-60-20 CNC Hydraulic Press Brake

GENERAL SPECIFICATIONS
 Capacity                    72 Tons
Overall Length of Bed & Ram            78.74”
Distance Between Housings            66.3”
Open Height                    11.4”
Stroke                        5.9”
Throat                        16.14”
Working Height                    35”
Back Gauge Range
Speeds
    Rapid Approach             22 - 4.2” Per Sec
    Press                     0- 0.5” Per Sec
    Return                     0- 7.7” Per Sec
Main Motor Horsepower                2 KW X 2
EQUIPPED WITH

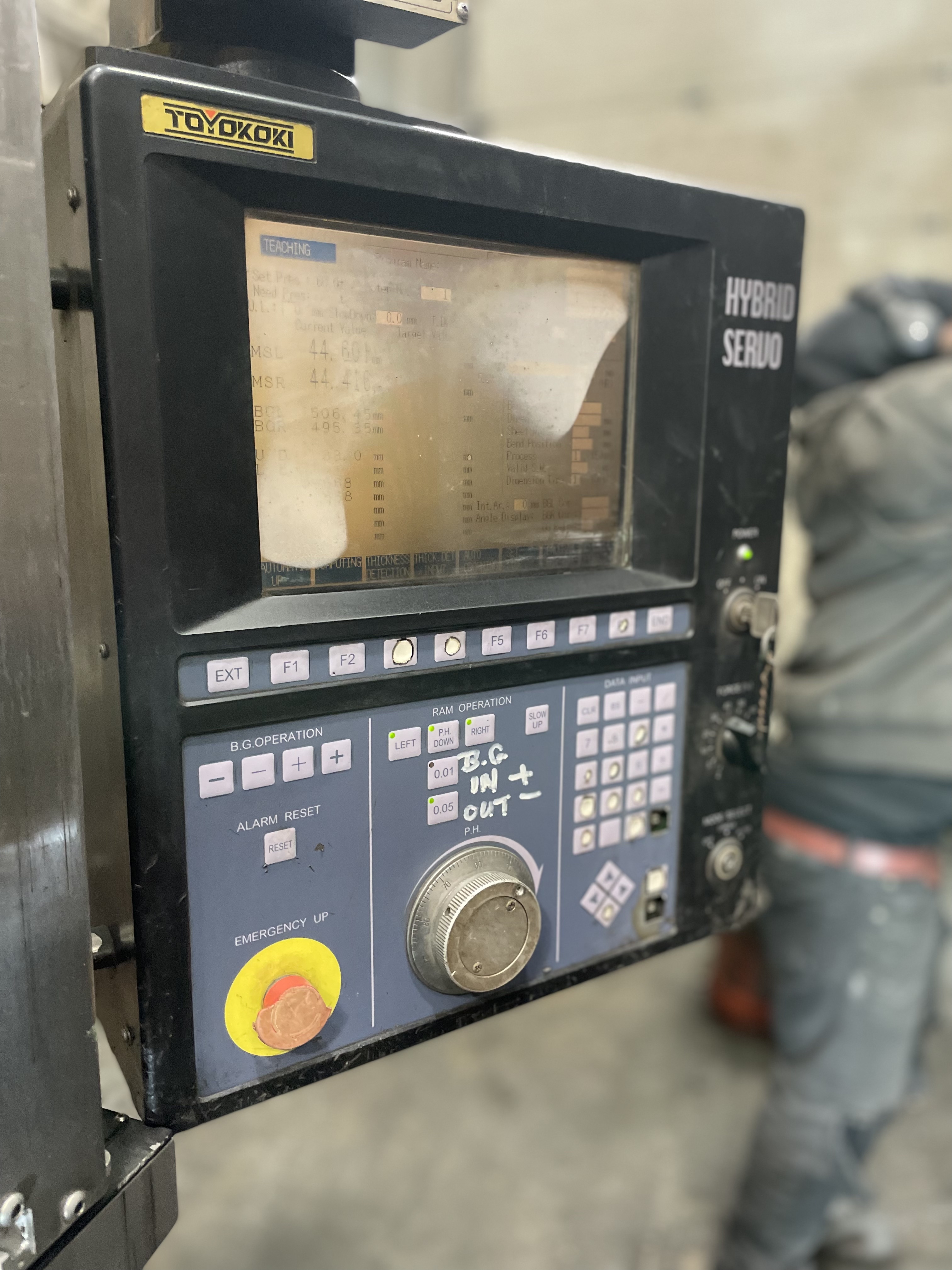

Multi Axis CNC Control
Y1 Y2 Dual Ram Encoders
Crowning

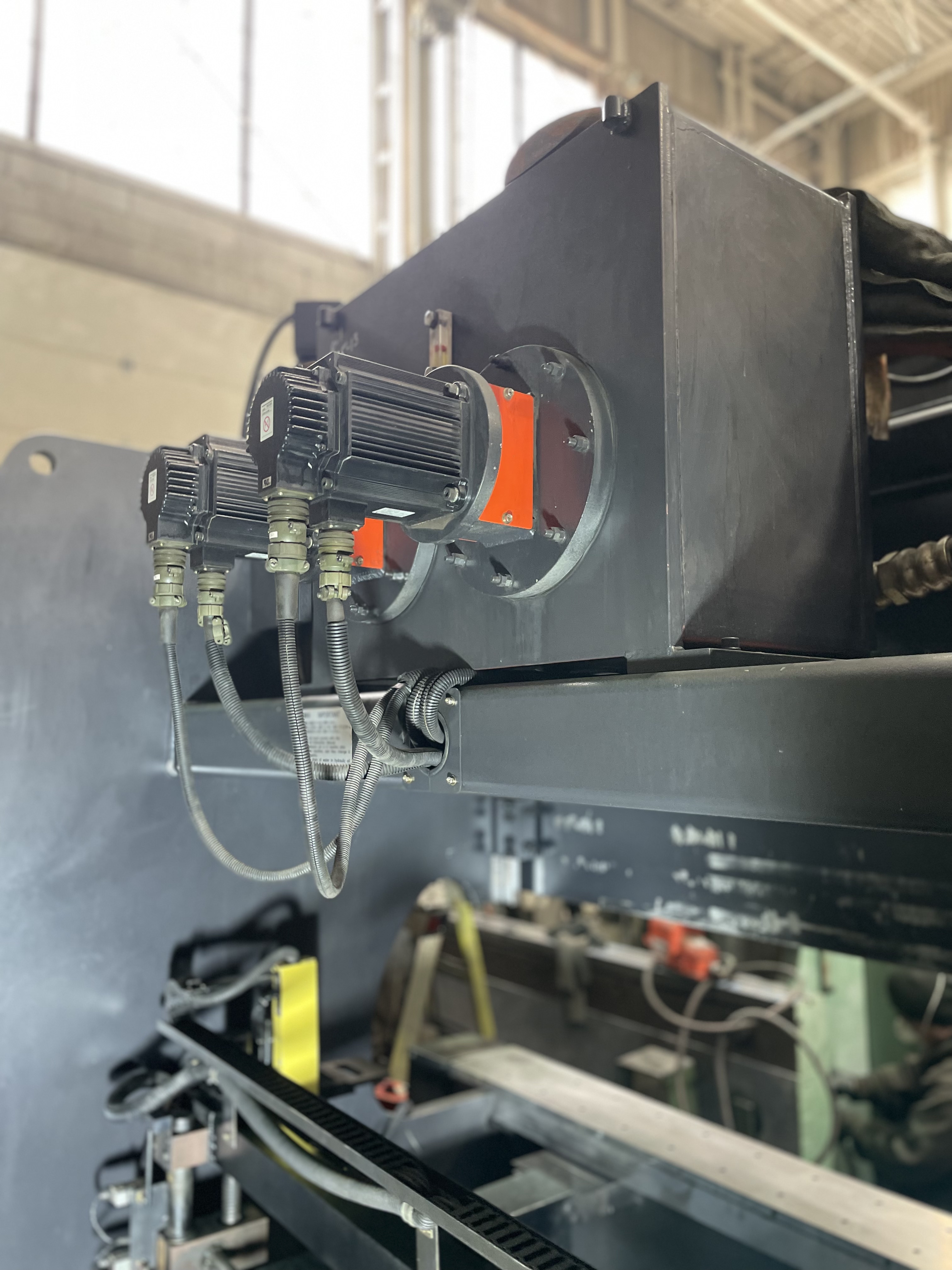

6-Axis (X, R  Z1, Z2) Back Gauge
Y1 - Y2 Dual Ram Encoders
Sectional Wilson Quick Change Ram Clamps
Pedestal Palm Button Station / Electric Foot Switch
Lazersafe Light Curtains
Lube System

Electrics
Approximate Overall Dimensions
Approximate Overall Weight                 10,803
