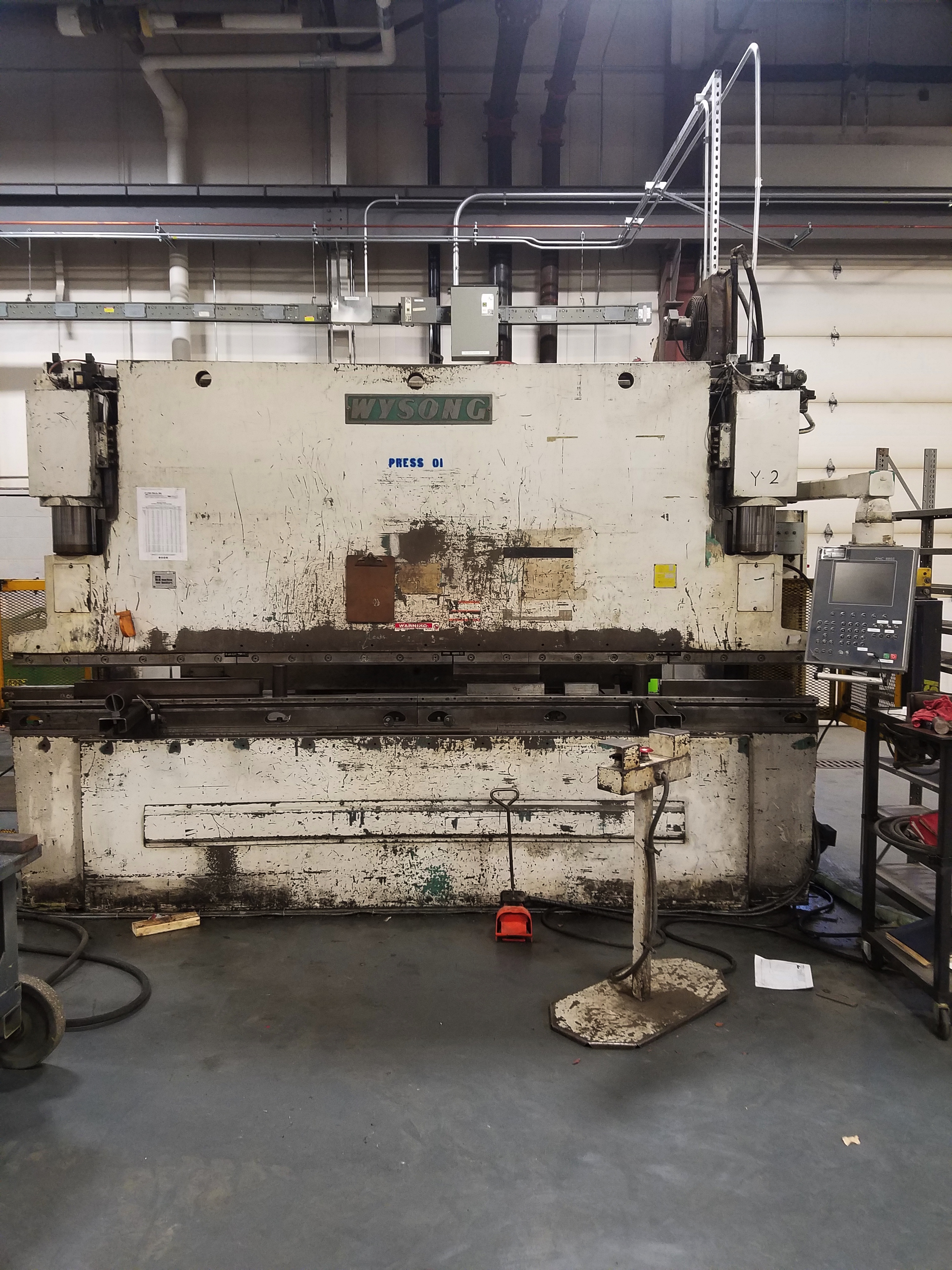

175 Ton X 12' Wysong RT4-175X146 CNC Hydraulic Press Brake

Pre Owned  Wysong RT4-175X146 CNC Hydraulic Press Brake
 Serial Number RT18-104-A

GENERAL SPECIFICATIONS
 Capacity                    175 Tos
Overall Length of Bed & Ram            12’
Distance Between Housings            10’6”
Open Height                    20”
Stroke                        8”
Shut Height    (SDAU)                12”
Throat                        8”
Oil Capacity                      US Gallons
Back Gauge Range                 0-24”
Speeds
    Rapid Approach             300 IPM
    Press                     20 IPM
    Return                     200 IPM
Main Motor Horsepower                7.5  2008/230/460

EQUIPPED WITH

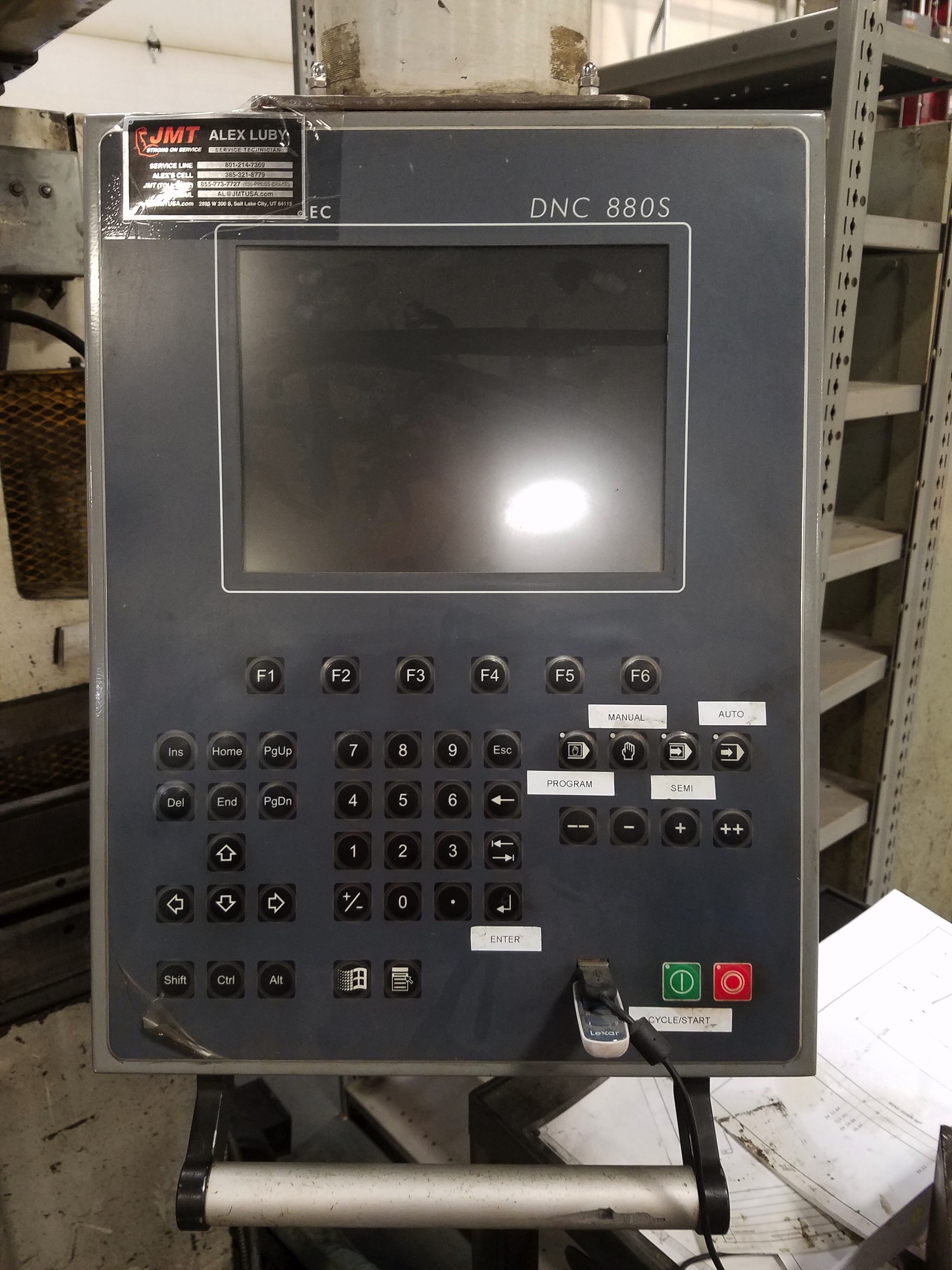

Cybelec DNC 880S CNC Control 4-Axis (X R, Z1, Z2) Back Gauge
Y1 - Y2 Dual Ram Encoders
Pedestal Palm Button Station / Electric Foot Switch
Variable Tonnage
Automatic In Bed Crowning
1-Shot Lube System
Power Clamp Upper Toolbar
Filler Block
Oil Cooler

Approximate Overall Dimensions
Approximate Overall Weight                 24,800
