120 TonX 12 Atlantic Model PPM36-100 CNC Press Brake
120 TonX 12 Atlantic Model PPM36-100 CNC Press Brake
Description

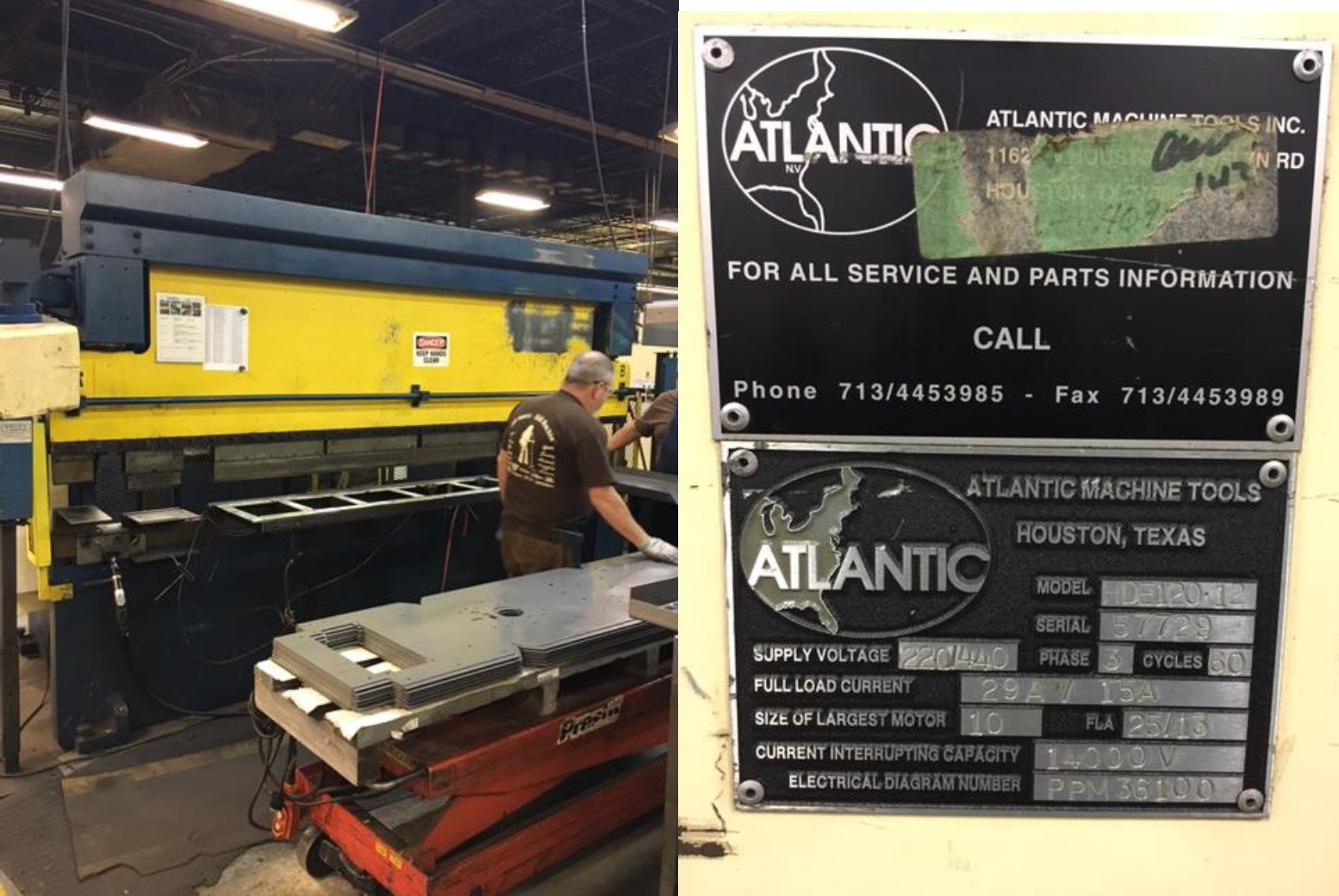

- Pre Owned Atlantic Model PPM36-100 CNC Press Brake
GENERAL SPECIFICATIONS
Capacity 120 TONS
Overall Length of Bed & Ram142”’
Distance Between Housings`122”
Stroke4.72”
Open Height 12.8”
Closed Height8.1”
Throat Clearance9.8”
Speeds
Approach165 Inch Per Minute
Form18 Inch Per Minute
Return150 Inch Per Minute
Main Motor Horsepower7.6
EQUIPPED WITH
Atlantic CNC Control & Back Gauge
Triad Light Curtins
Electric Foot Switch
Approximate Overall Weight 17196 Lbs
Approximate Overall Dimensions
