32" X 100" Mazak Mo 30-100 Engine Lathe

PrintEmail
32" X 100" Mazak Mo 30-100 Engine Lathe

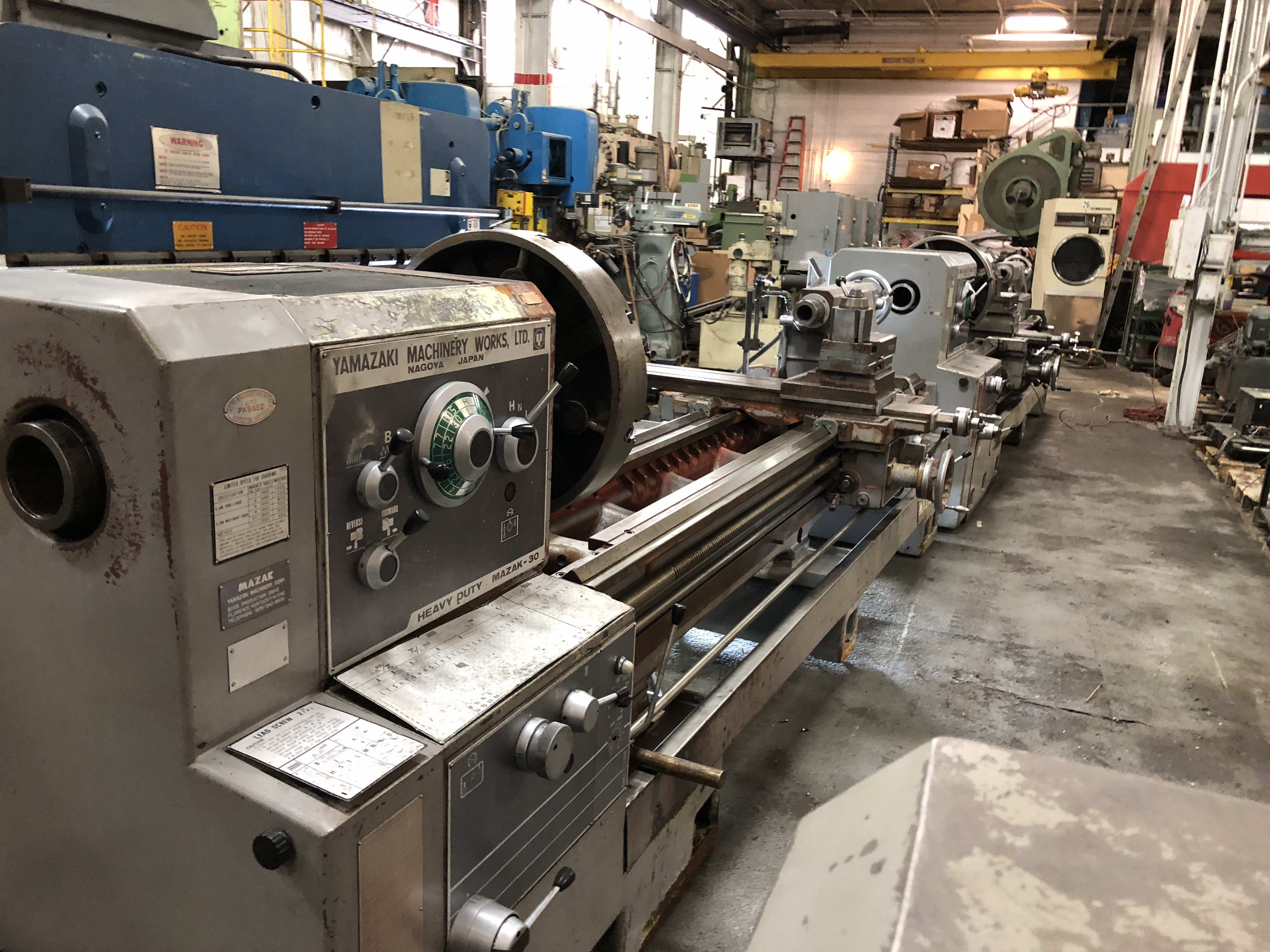

mazak-30-engine-lathe--sn-51494w4

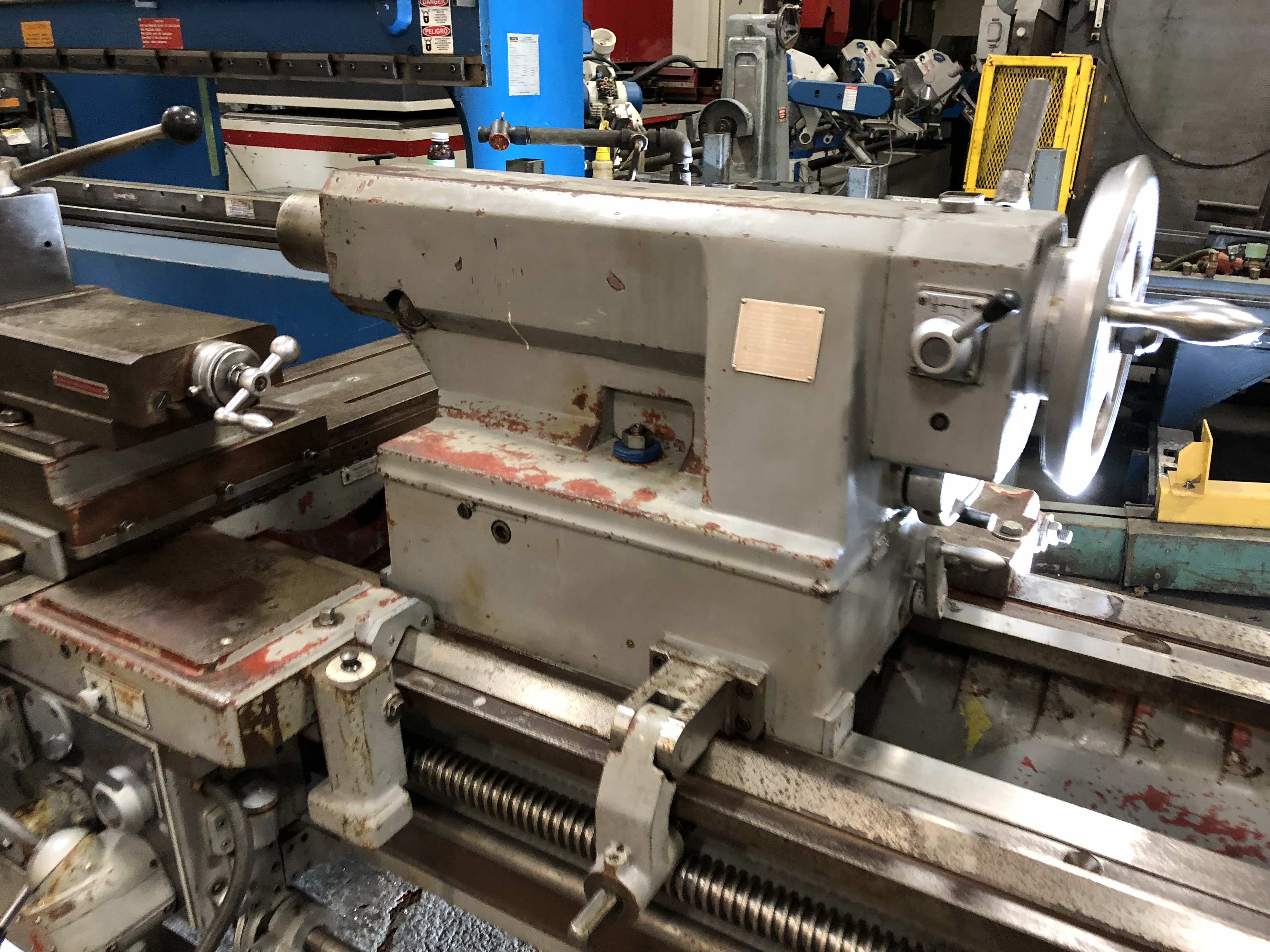

mazak-30-engine-lathe--sn-51494w6

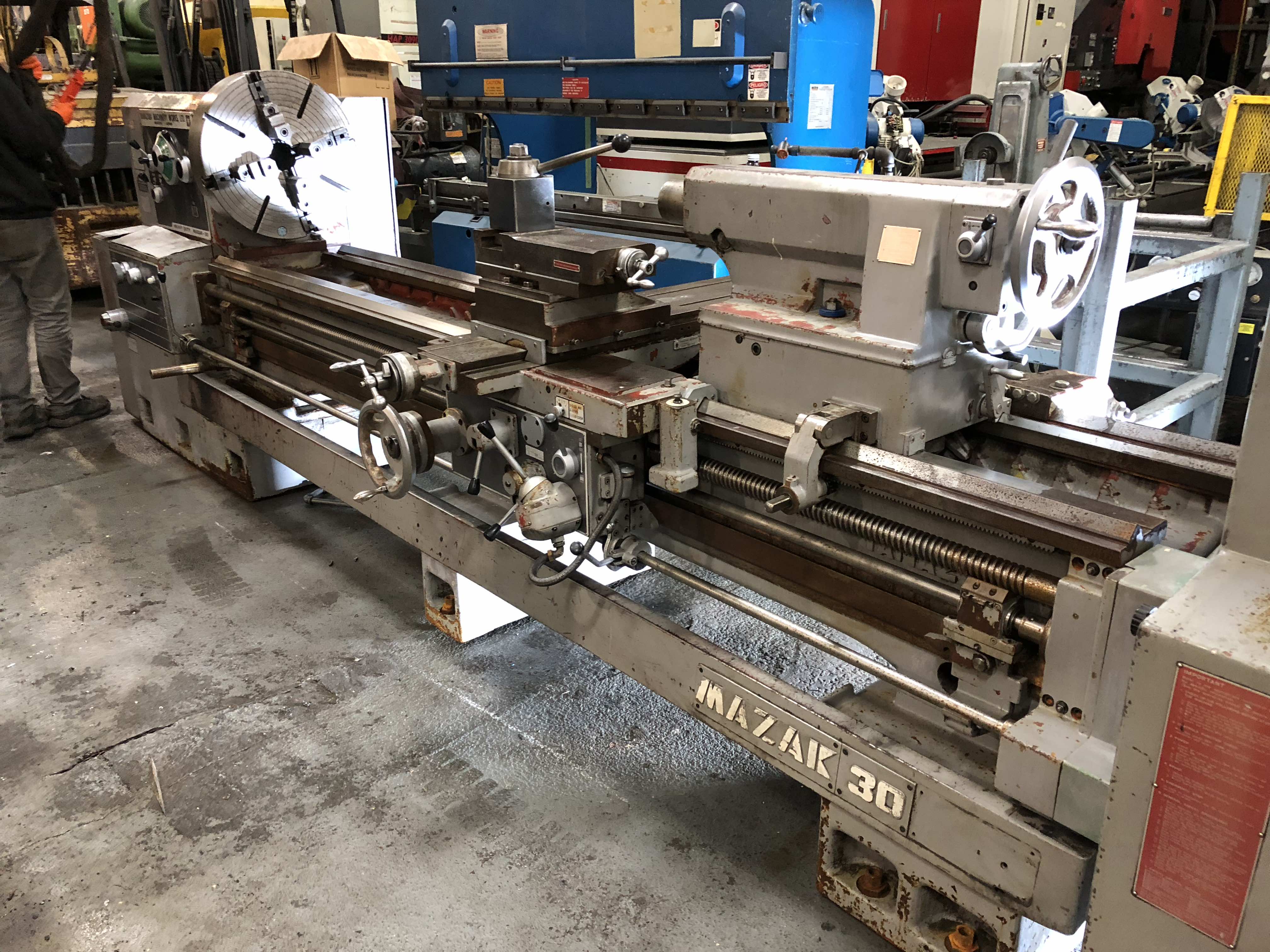

mazak-30-engine-lathe--sn-51494w76
Description


Pre Owned 32 / 40 “ X 105" Mazak Mo 30-100 Engine Lathe  Serial Number 51494W

General Specifications
Swing Over Bed                     32””
Swing over Cross Slide                     20.8”
Swing over Removable Block Gap             40”
Length of Gap                        12”
Distance Between Centers                 105” +
Spindle Bore                         4 1/16”
Spindle Nose (Camlock Type)                 D11
Spindle Speeds                     12 to 1200 RPM
Threads
    Inch                         (60)  1  - 28 TPI
    Metric                         (60)  1 - 28 mm
Main Drive Motor                    20 HP AC
Hardened & Ground Bed

Equipped With
24" 4 Jaw Chuck
4 Way Tool Post
Removable Bed Gap
Hardened & Ground Bed
 Taper Attachment
Chip Pan

Approximate Machine Weight                 10250 Lbs
Approximate Machine Dimensions
