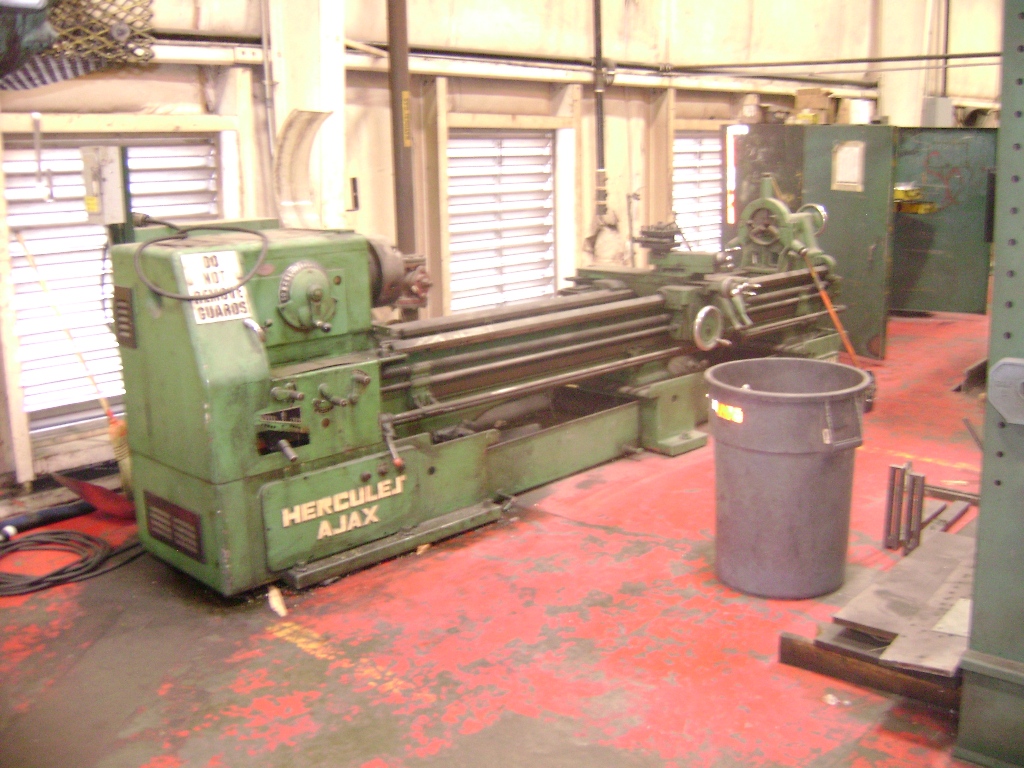

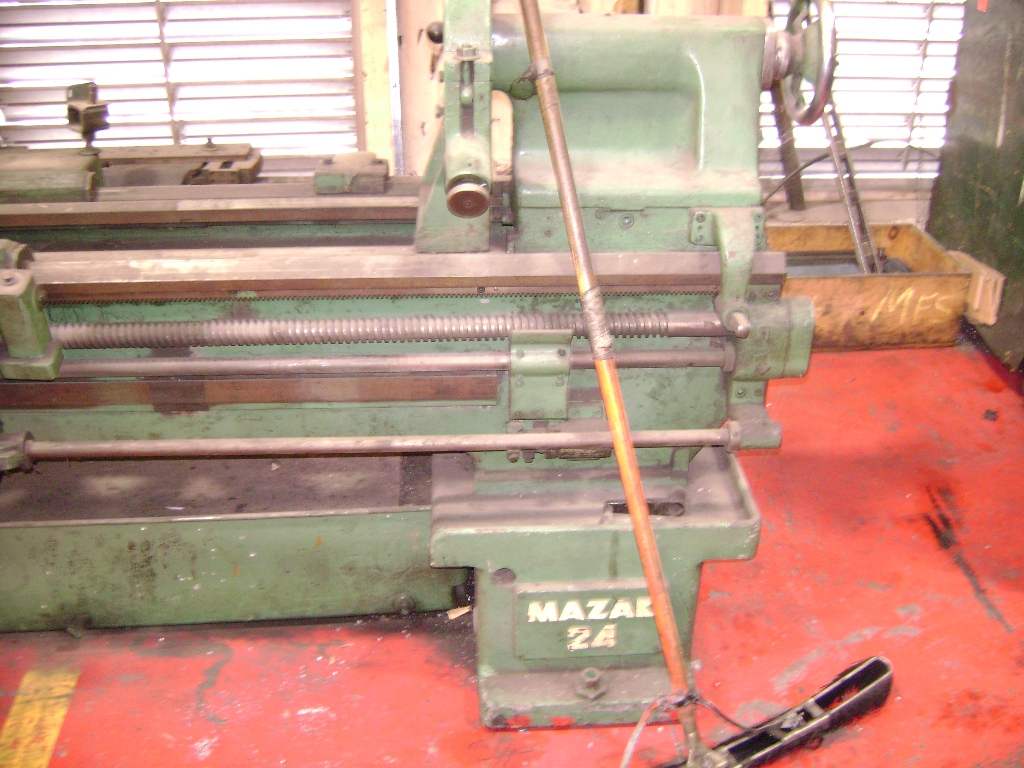

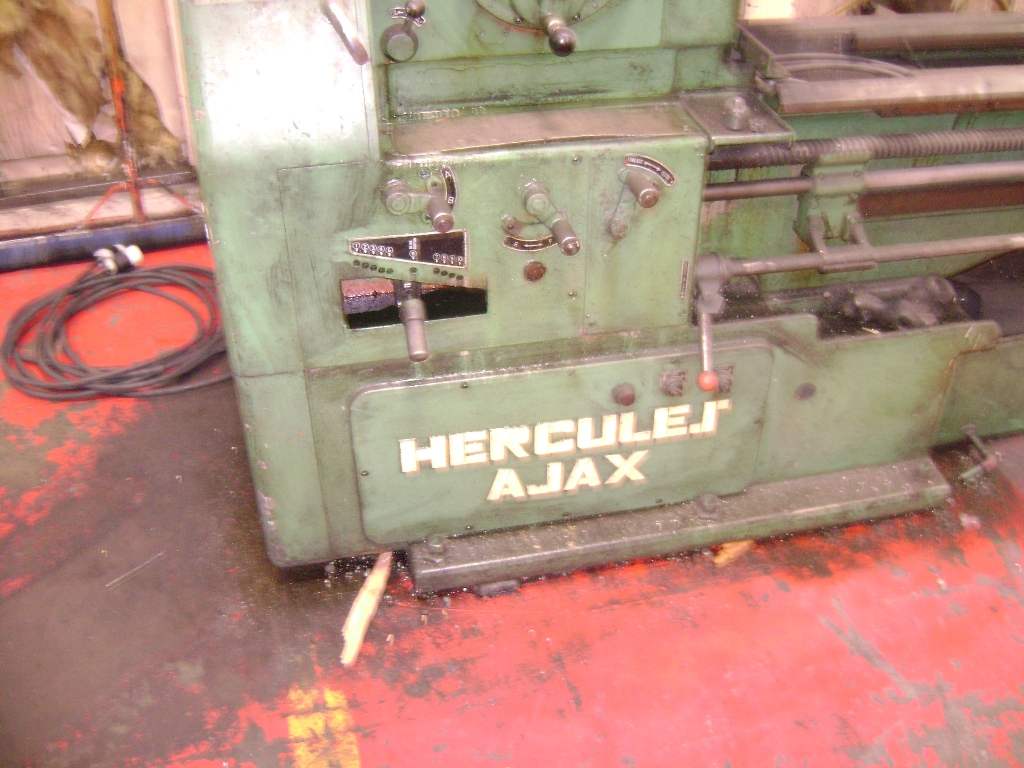

24"/33.75" X 120" MAZAK HERCULES AJAX ENGINE LATHE

(1) Pre Owned 24"/33.75" X 120" MAZAK HERCULES AJAX ENGINE LATHE

General Specifications
Swing Over Bed                     24”
Swing over Cross Slide                     14.46
Swing over Removable Block Gap             33.75”
Length of Gap                        16.34
Distance Beween Centers                 10’
Spindle Bore                         2.06”
Spindle Nose (Camlock Type)                 D1-8
Spindle Speeds                     25 to 1,540 RPM
Threads
    Inch                         (60)  2  - .128 Per Inch
    Metric                         (60)  25 to .16 mm
Main Drive Motor                    10 HP AC
Hardened & Ground Bed

Equipped With
Taper Attachment
12" 3 Jaw Chuck
4 Way Tool Post
Removable Bed Gap
Hardened & Ground Bed
Electric Brake

Approximate Machine Weight                 10,000 Lbs
Approximate Machine Dimensions             189” X 53” X 53” H
