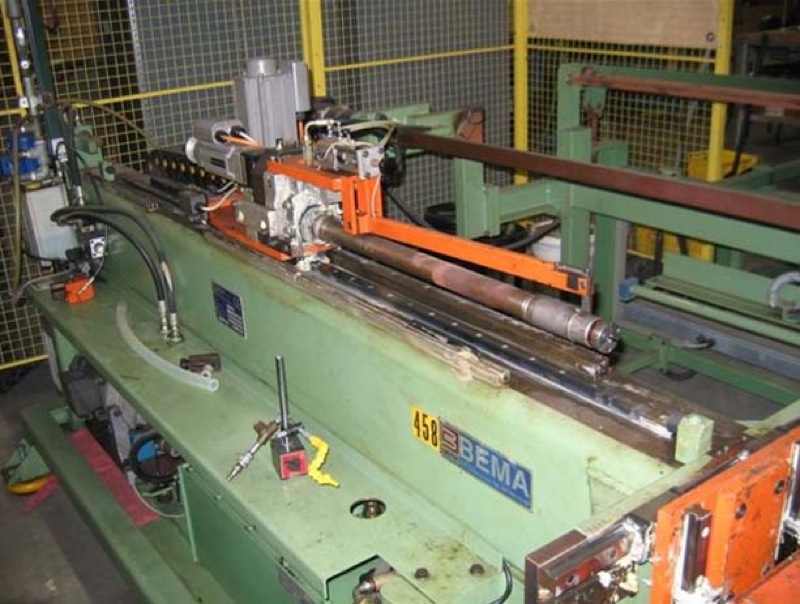

PRE OWNED 1999 BEMA REKORD AUTOMATIC CNC TUBE BENDING MACHINE
MODEL REKORD 25 FGC24DS
SERIAL NUMBER: 2148

GENERAL SPECIFICATIONS
MAX TUBE BENDING CAPACITY (MILD STEEL)             D.25 X 1.5mm
MAX TUBE BENDING CAPACITY AL-CU ROUND TUBES         D.25 X 2,5mm
MAX CENTERLINE BENDING RADIUS                    120 mm
MAX INSIDE BENDING RADIUS                     3 mm
MAX WORKING LENGTH                        2650 mm
DISTANCE “H”                                 70mm
DISTANCE “D”                                 70mm

EQUIPPED WITH

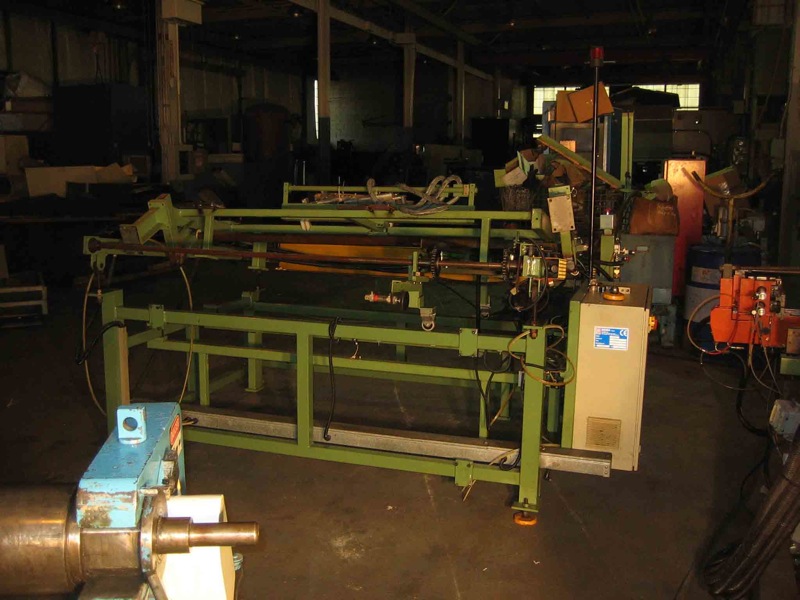

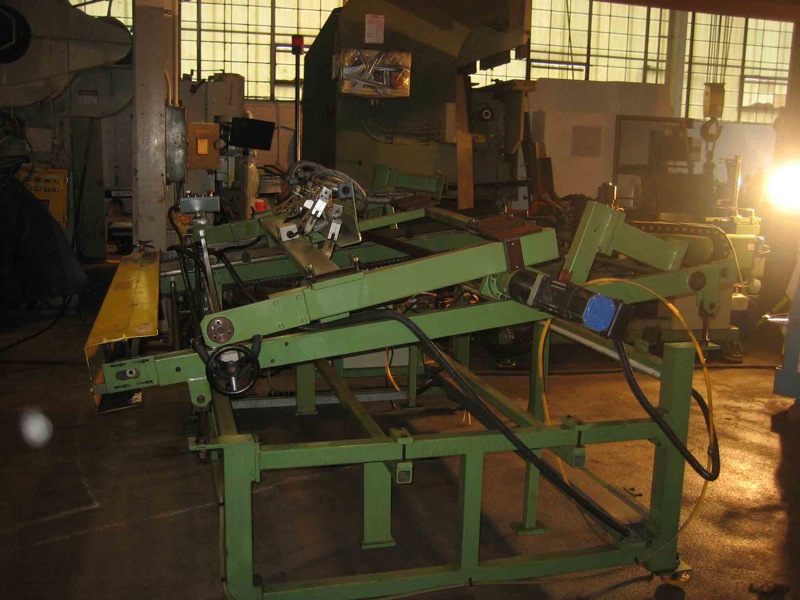

BEMA CT 25 / 3500 AUTOMATIC FEEDER
    MAX CAPACITY WITH 1 TUBE         .6-25 mm
    MAX CAMACITY WITH 1-2 TUBES     6 mm
    MAX CHANGEABLE TUBE LENGTH     1800/2000mm
    MIN CHANGEABLE TUBE LENGTH     200mm
    LENGTH OF INCLINED RACK        1000mm

BRUSHLESS MOTORS

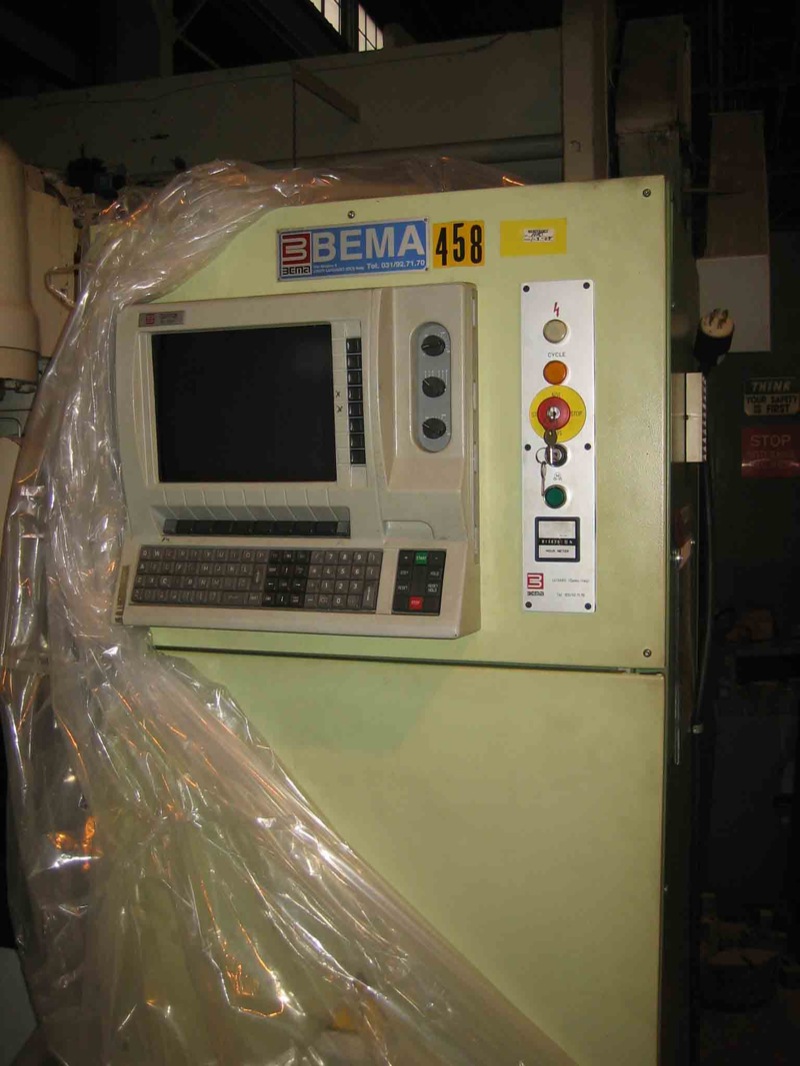

BEMA/ESA 32 BIT CNC CONTROL
     2 RS 232 PORTS
MANUAL, SEMI-AUTOMATIC OR AUTOMATIC OPERATION

BEMA REKORD
APPROXIMATE OVERALL DIMENSIONS (MACHINE ONLY) 3500 mm L X 100mm W X 1200mm APPROXIMATE OVERALL WEIGHT                 1700 kg
CT25 AUTOMATIC FEEDER
APPROXIMATE OVERALL DIMENSIONS (MACHINE ONLY) 3250 mm L X 3150mm W X 1350+650mm
APPROXIMATE OVERALL WEIGHT         1100 kg
