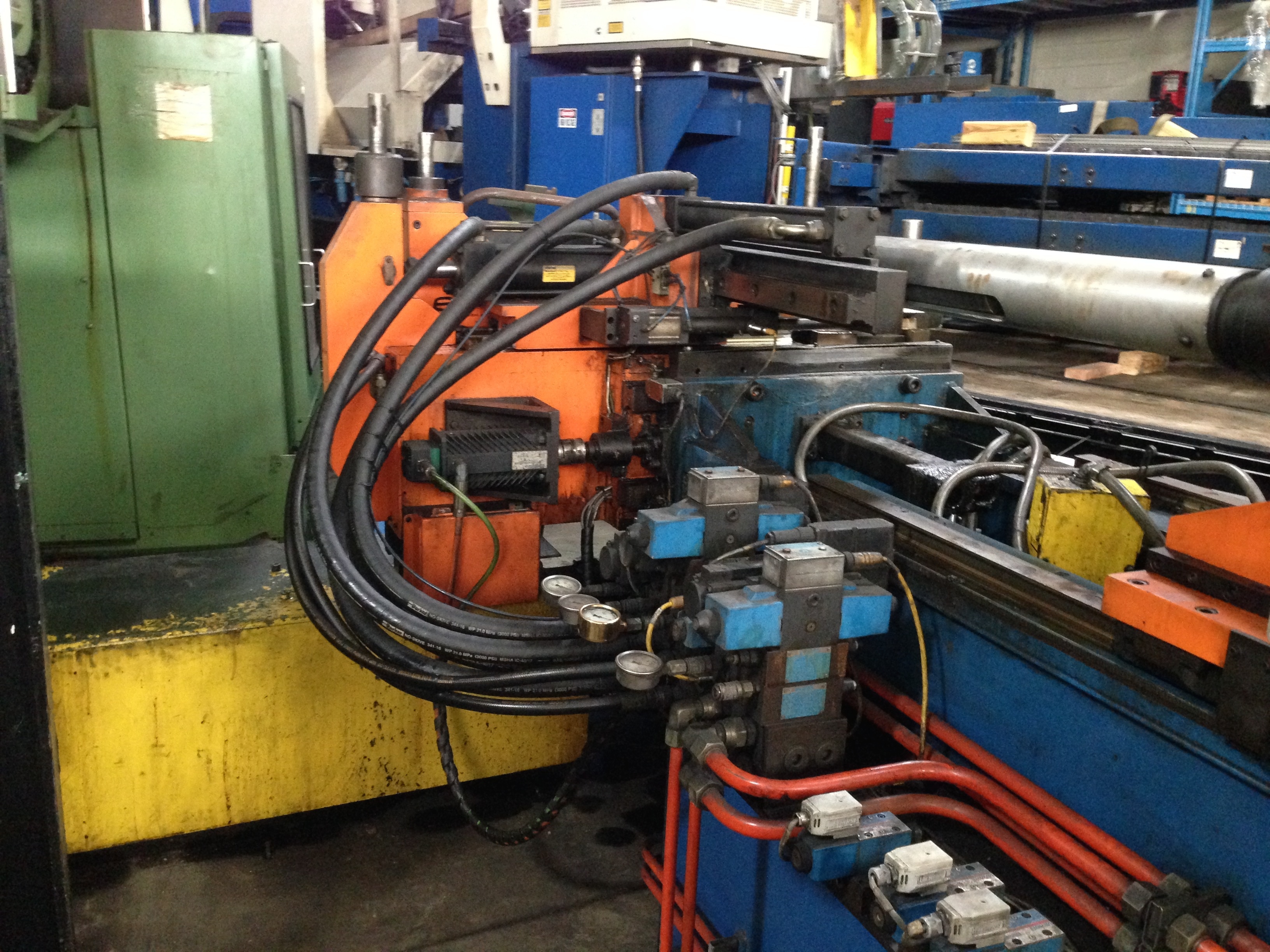

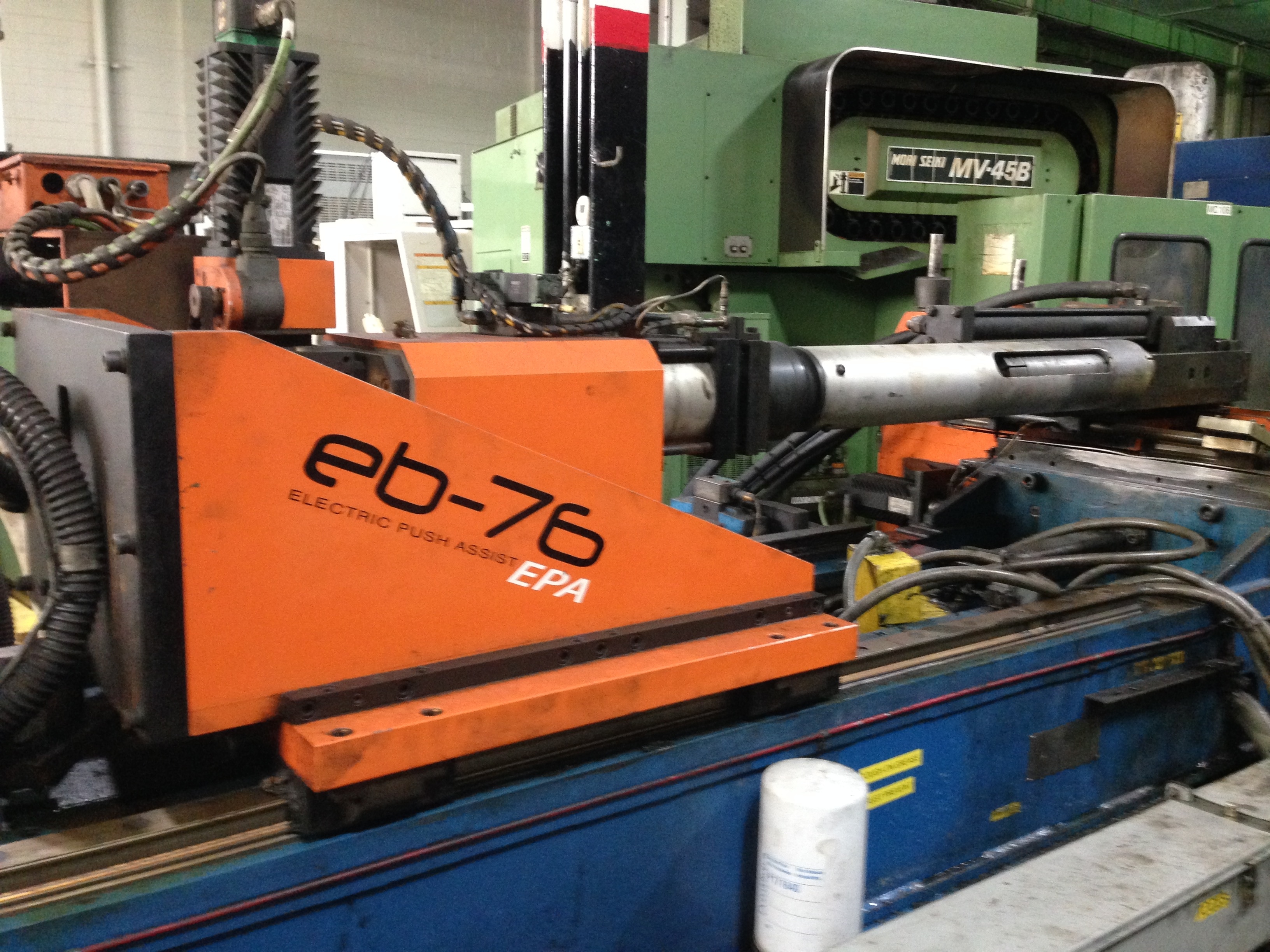

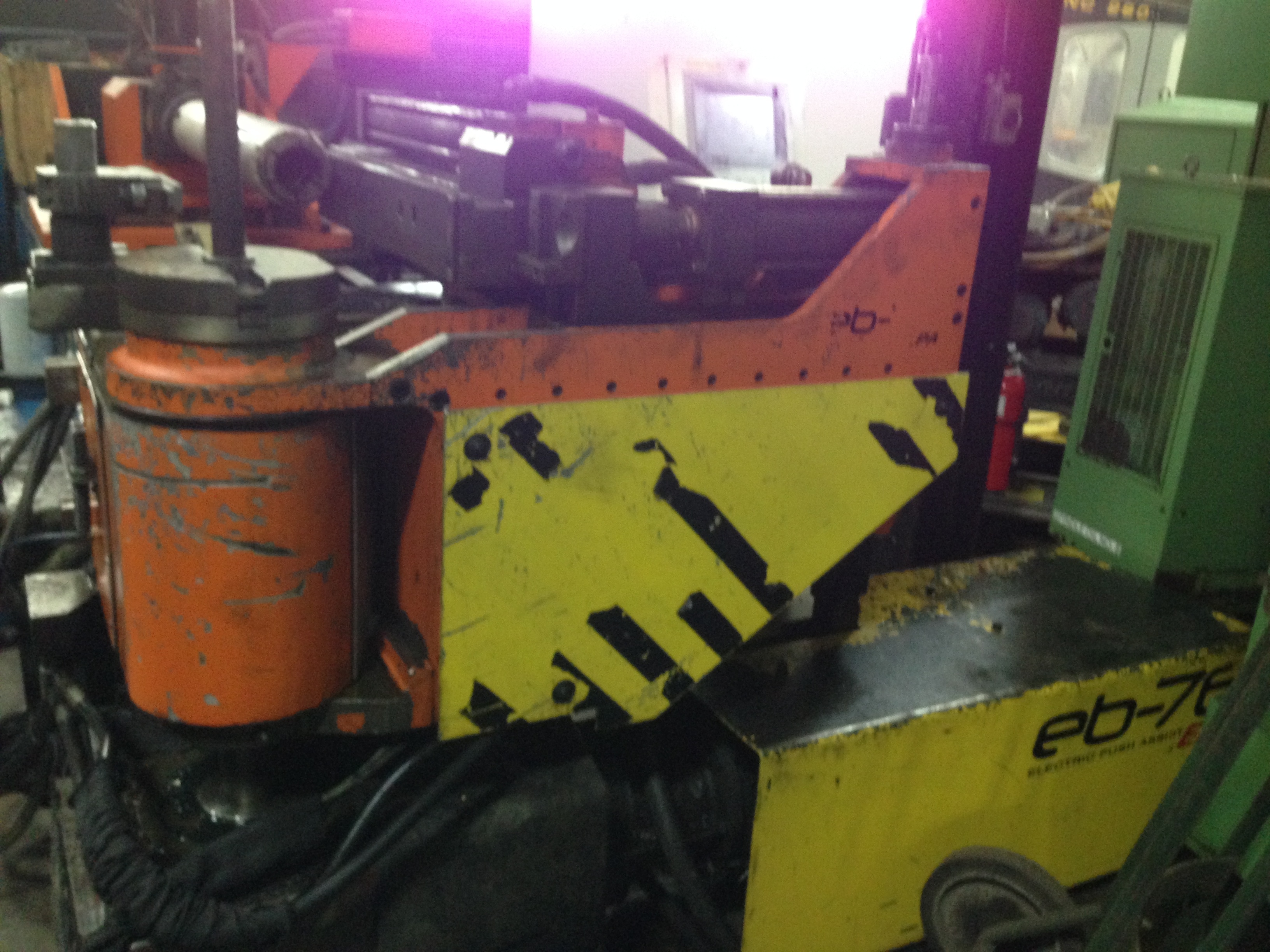

Pre Owned Adaptive Motion EB-76 EPA CNC Tube Bender with Electric Push Assist
New in 2006

GENERAL SPECIFICATIONS
Max Tube Length Over Mandrel             15’
Max Bend Arm Travel                195 Degrees
Max Operating Speed                 25 RPM
Centerline Height                 2”
Max Centerline Radius                10”
Max Tube Size                     3” X 0.187
Bending Torque                 240,000 Lb/In @ 180 Deg / Sec
Carriage Boost                     15,000 Lbs

EQUIPPED WITH

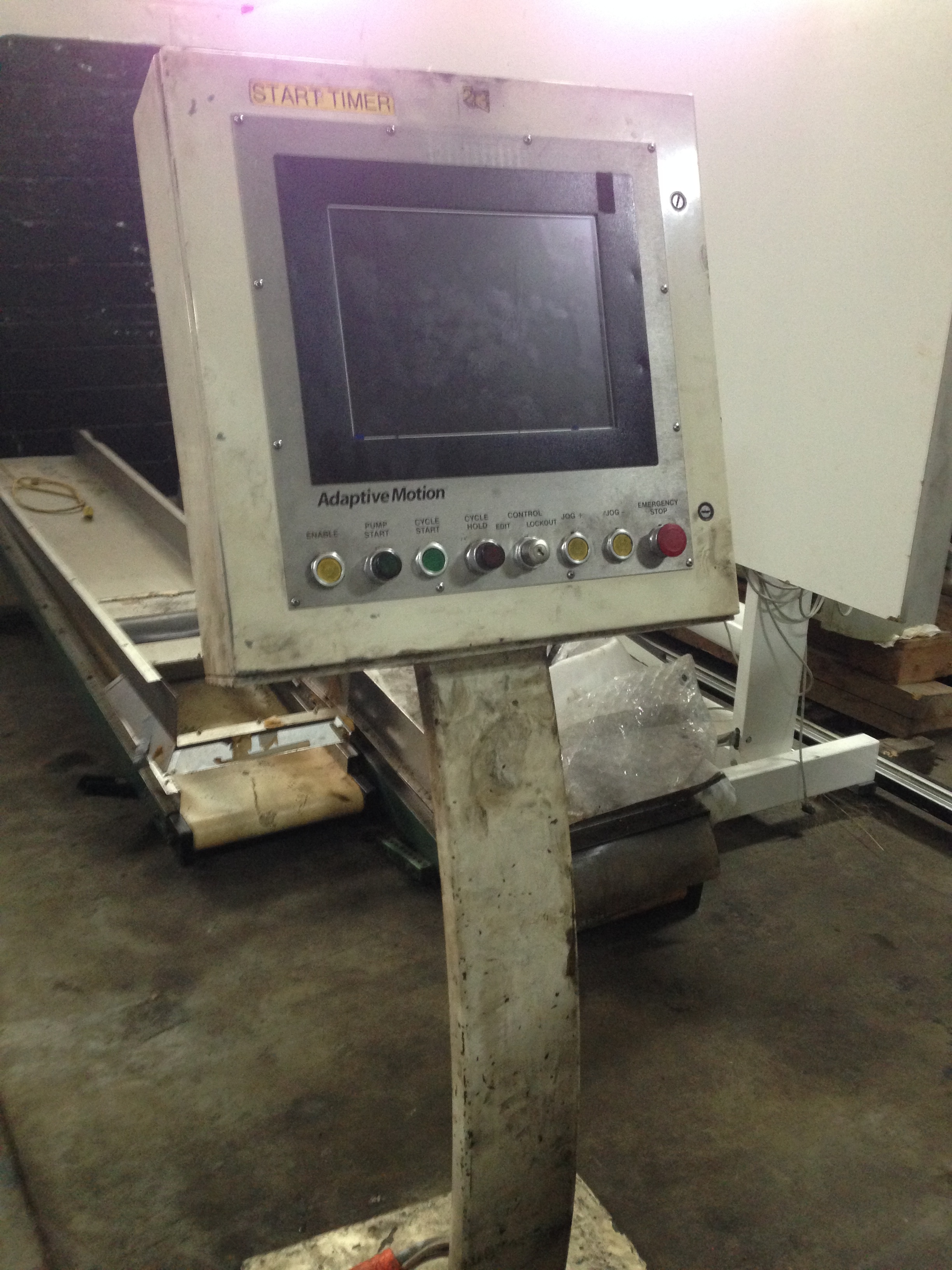

Adaptive Motion Touch Screen Control
Electric Push Assist
Dual Loop Feedback  (2 Encoders on Y,B and C Axis)
Servo Follower
Pressure Die Clamp
Servo Motor CLR Setting for Rapid Setup
CCW Rotation
