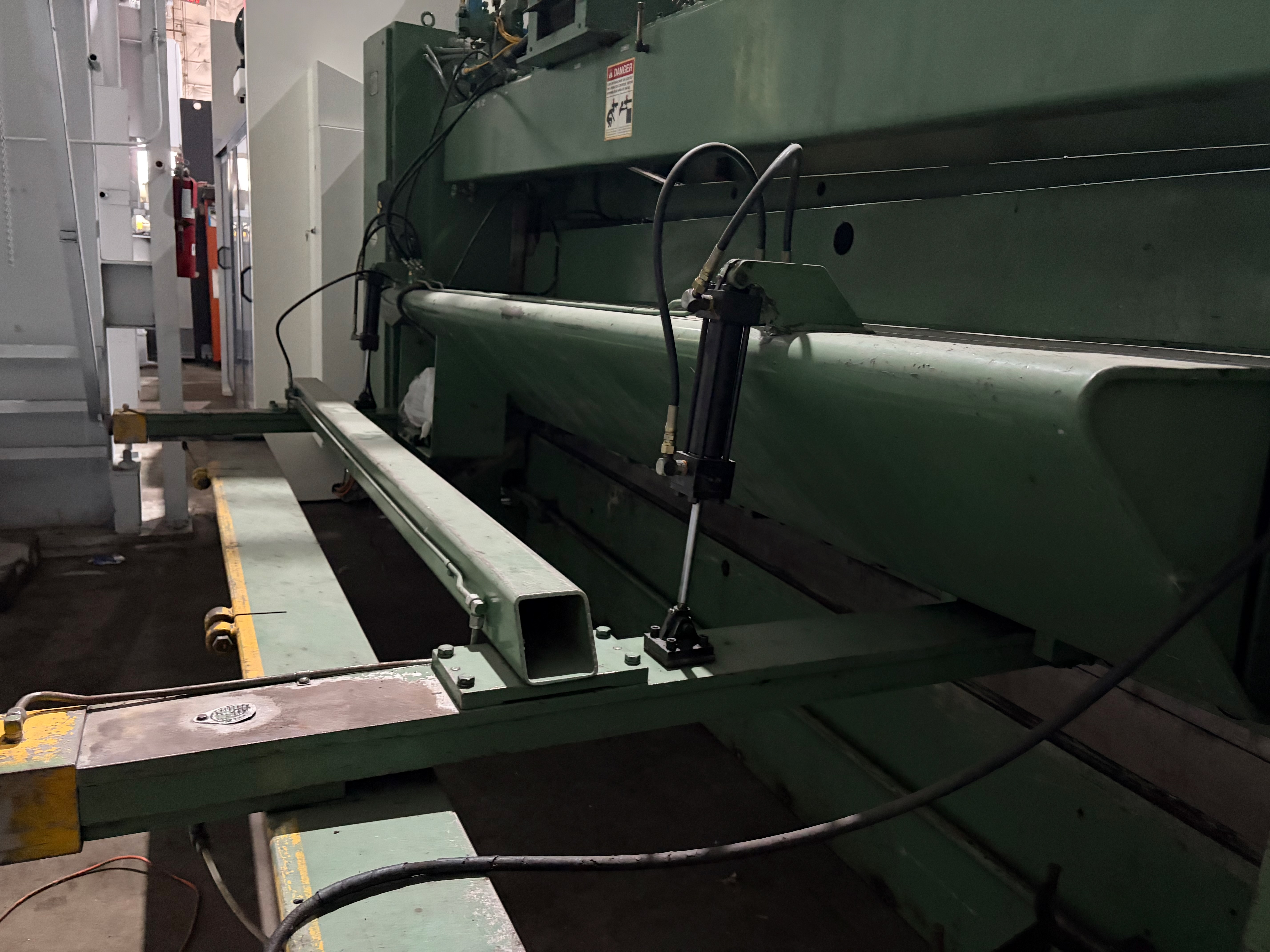

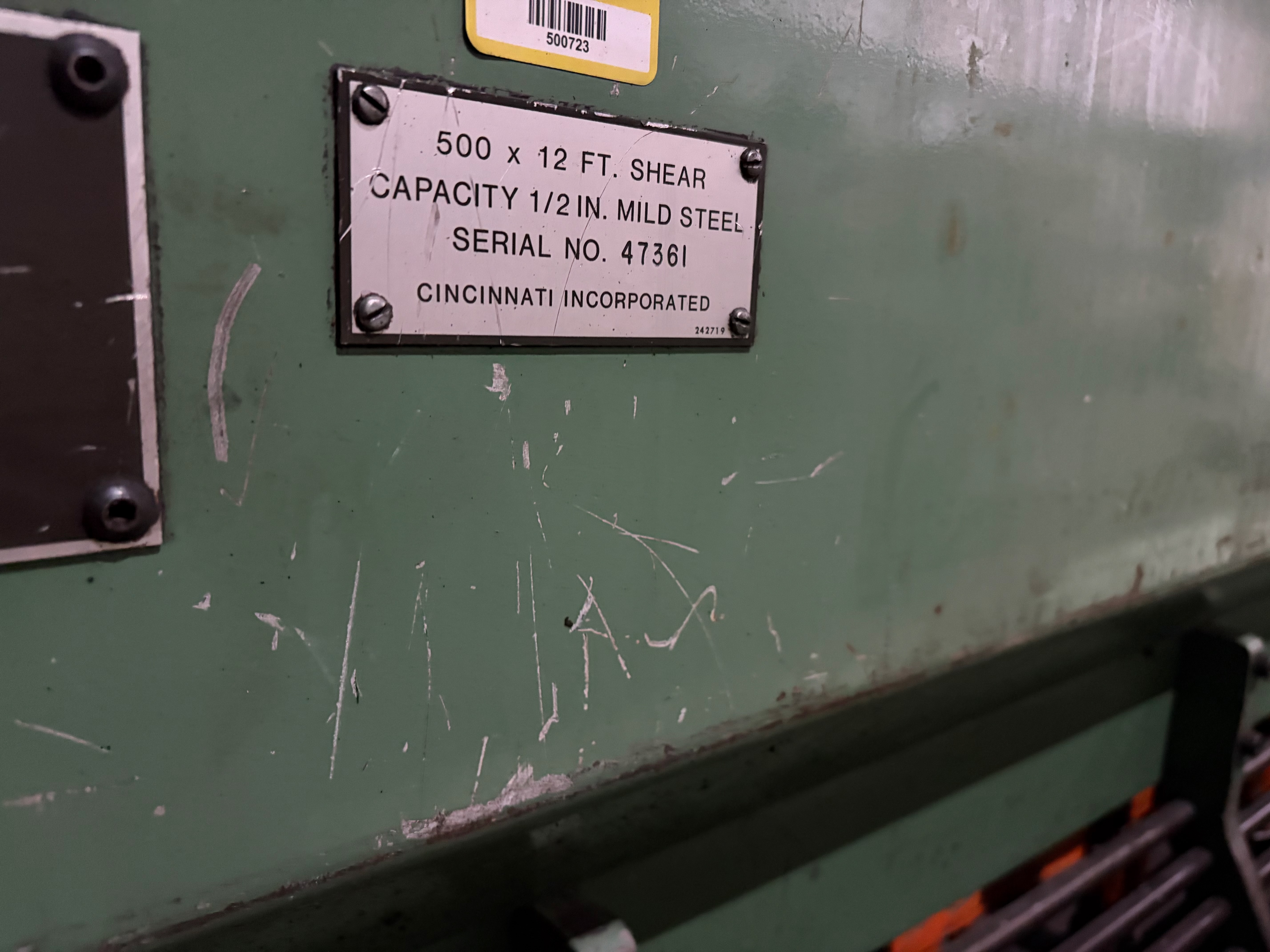

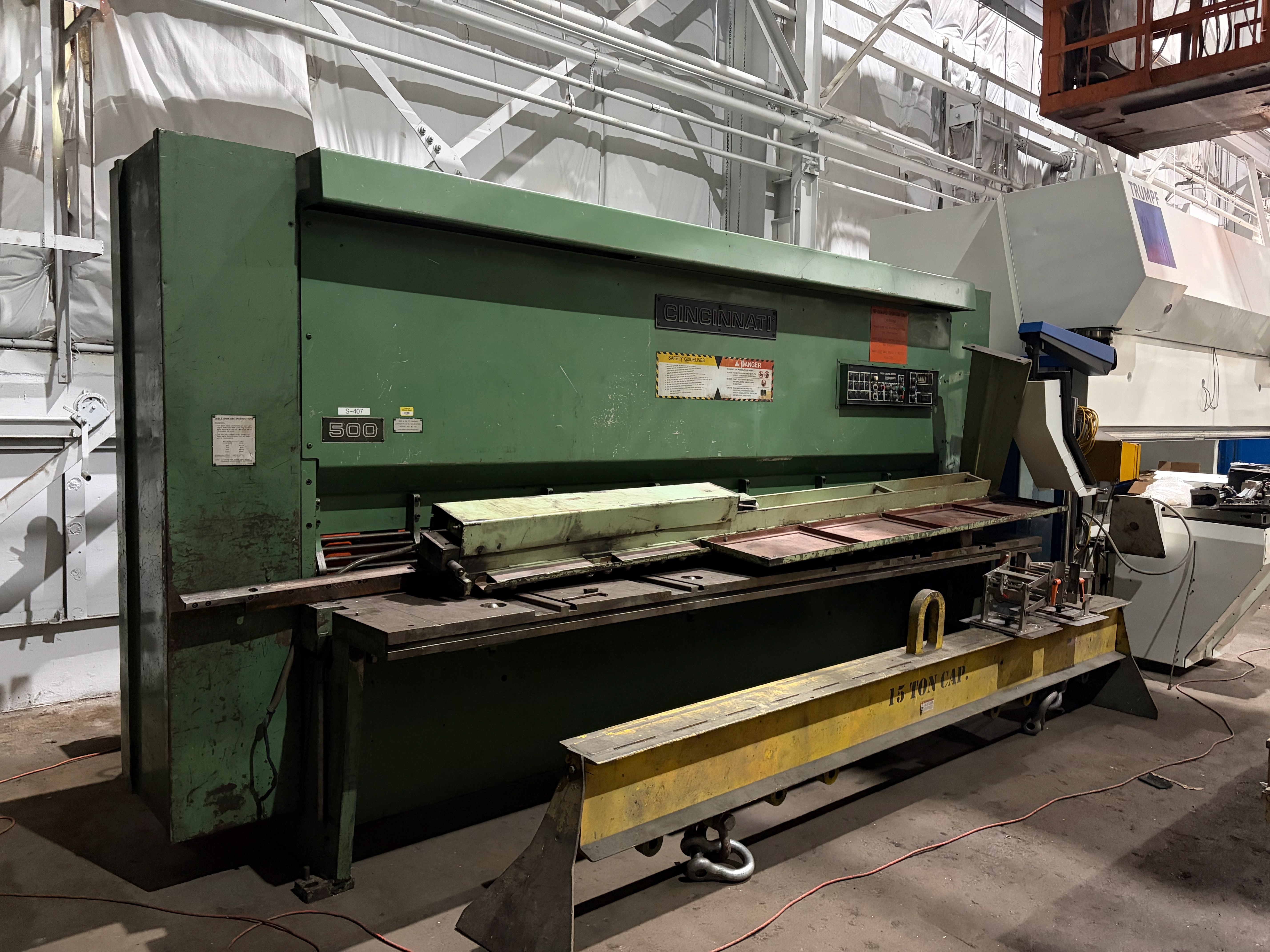

- Pre Owned Cincinnati Model 500HS12 Hydraulic Power Squaring Shear
GENERAL SPECIFICATIONS
Capacity (Mild Steel) 1/2”
Maximum Shearing Length 146 3/4”
Back Gauge Range (Front Operated Power, High Speed) 48” @ 120 I.P.M
Number of Hold Downs 13
Distance Under Hold Downs 1”
Strokes Per Minute 19-53
Main Motor Horsepower 40
EQUIPPED WITH
Electronically Adjustable Rake Angle
Hydraulic Back Gauge Pull Back
Automatic Central Lubrication
Electric Foot Switch
Area Lights
Light Beam Shearing Gauge
Approximate Overall Dimensions 174” L X 108” W X 99” H
Approximate Overall Weight 29000 Lbs
