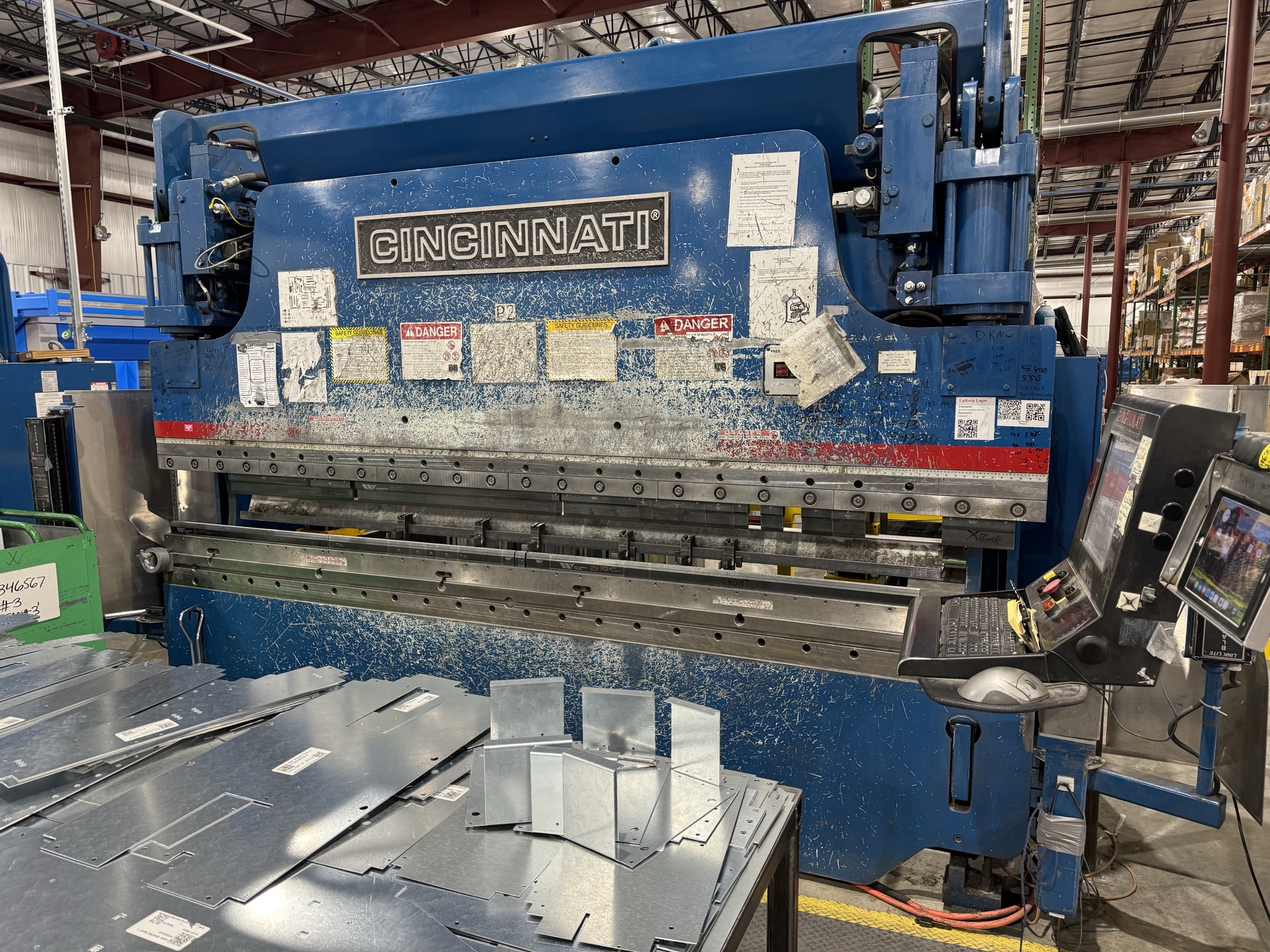

- Pre Owned Cincinnati Model 90AF10 Plus Autoform CNC Hydraulic Press Brake
GENERAL SPECIFICATIONS
Capacity 90 TONS
Overall Length of Bed & Ram 12’
Distance Between Housings 10’ 6 1/2”
Stroke 8”
Open Height 15”
Closed Height 7”
Throat Clearance 12”
Speed
Approach 380 Inch/Minute
Form 1 to 120 Inch/Minute
Return 1 to 270 Inch/Minute
Width At Top Of Bed 31/2”
Main Motor Horsepower 25 HP 460/3/60
EQUIPPED WITH

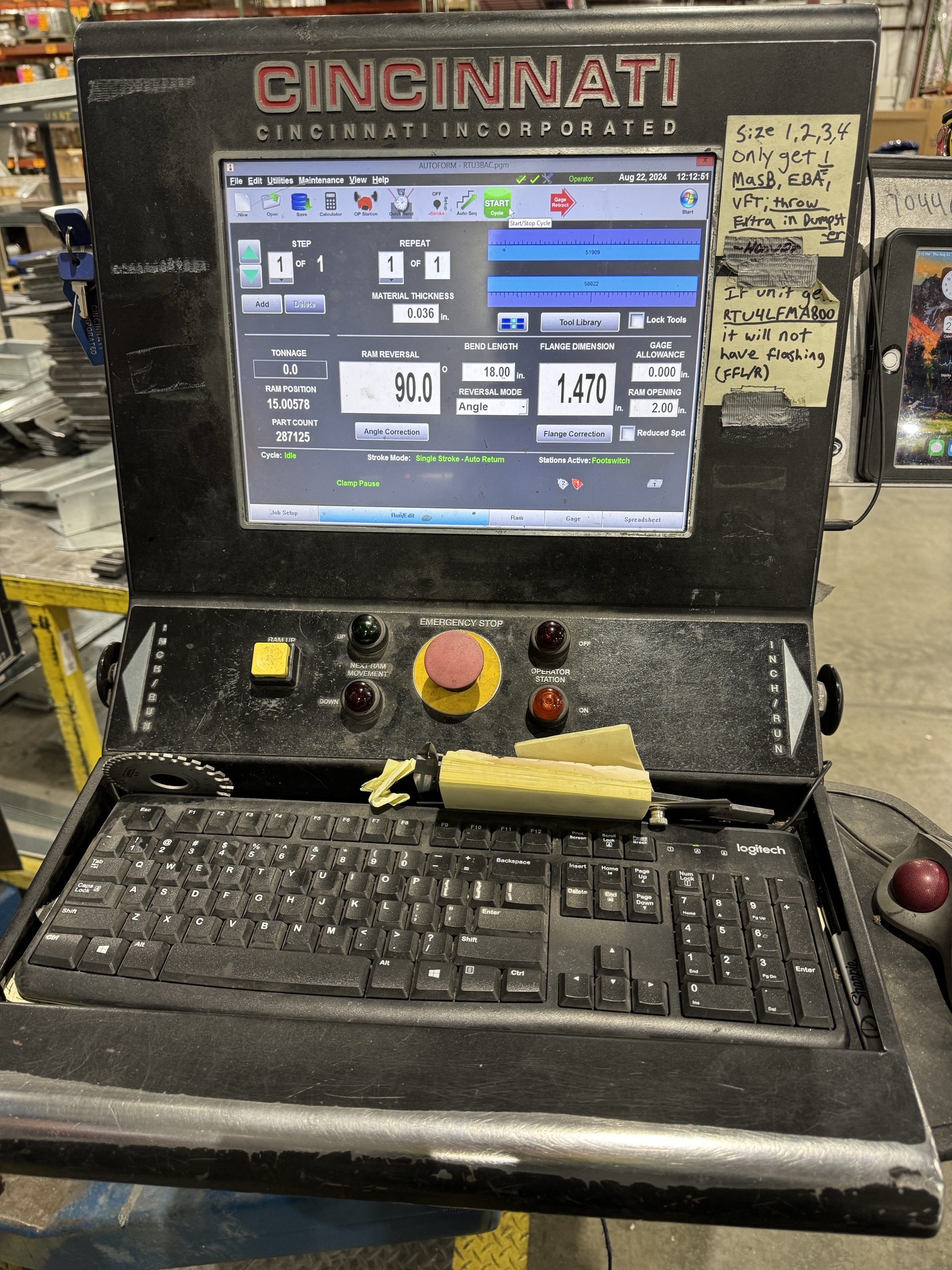

Cincinnati Autoform PC Control
24” 3-axis Back Gauge (X1, X2 & R)
Link Black Max Light Curtains
Precision Ram Leveling With Dual Linear Glass Scale Encoders
Off Load Center Compensation
Variable Volume Load Sensing Pump And Servo Hydraulic System
3-Position Electric Foot Switch
Presence Sensing Interface
Palm Button Station
Manuals
Interlocked Construction
Approximate Overall Weight 19300 Lbs
Approximate Overall Dimensions 144” L X 72” W X ’121” H
