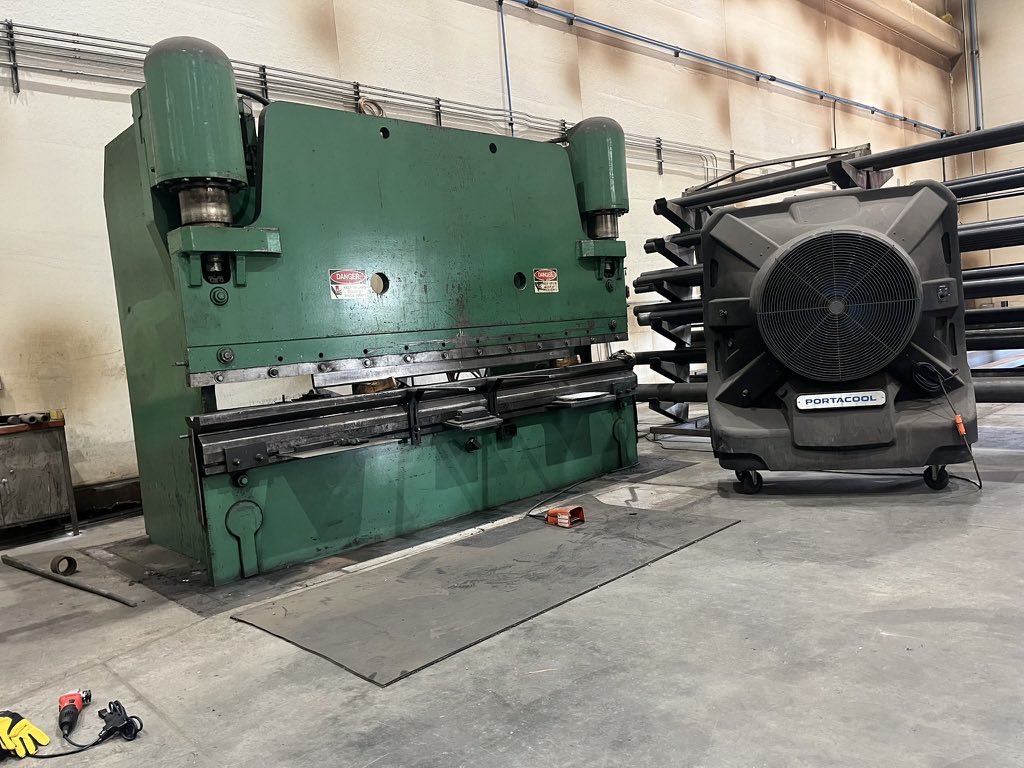

Pre Owned   Pacific Model K300-12  Hydraulic Press Brake


GENERAL SPECIFICATIONS
Capacity                             300 TONS
Overall Length of Bed & Ram                    24’
Distance Between Housings                    10’ 5 1/2”
Stroke                                12”
Open Height                            22”
Closed Height                            10”
Throat Clearance                        14”
Width At Top Of Bed                        8”
Main Motor Horsepower                    30

EQUIPPED WITH
Ram Machined For Angles

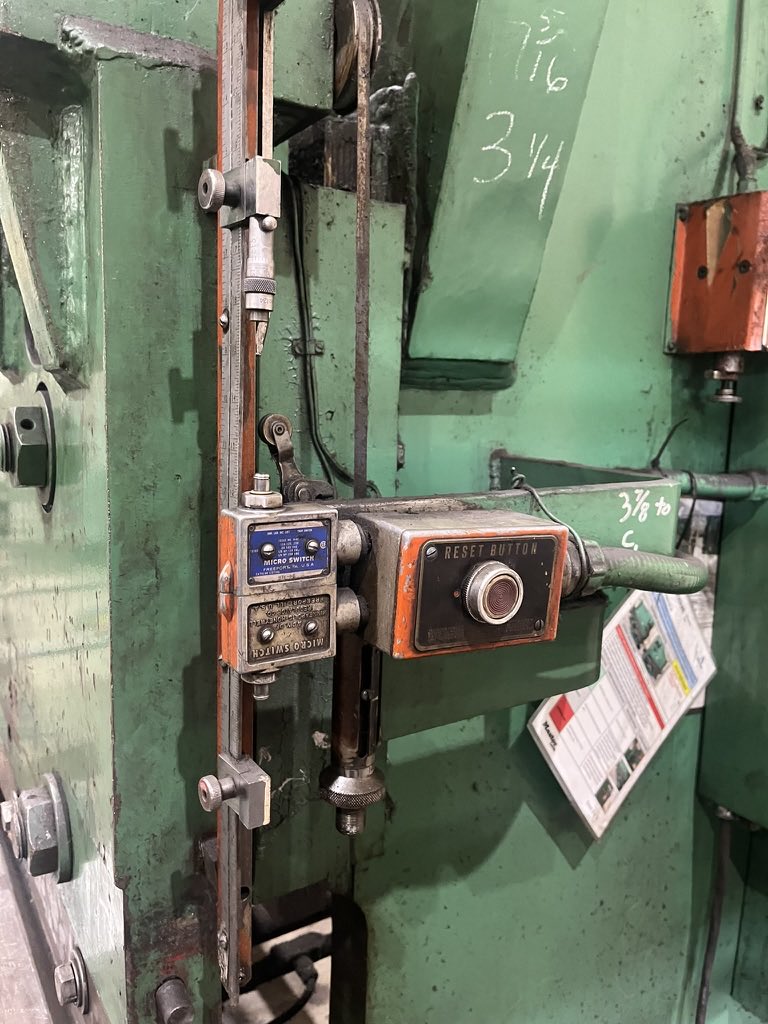

Micrometer Depth Stops

Approximate Overall Weight                  37000 Lbs
Approximate Overall Dimensions             175” W X 80” D X 118” Tall
