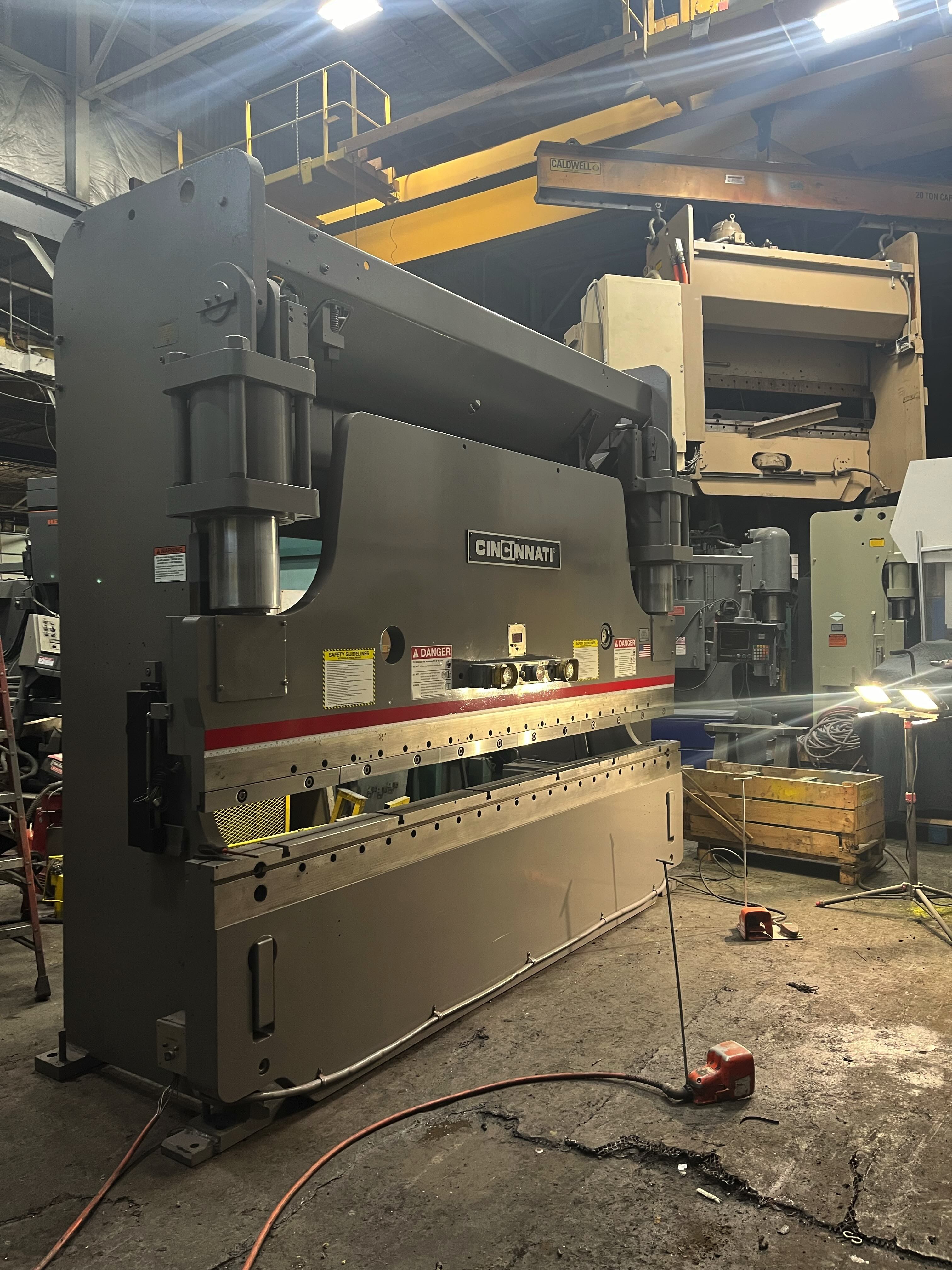

Pre Owned Cincinnati 230FM Hydraulic Press Brake

GENERAL SPECIFICATIONS
Capacity                          230TONS
Overall Length of Bed & Ram                12’
Distance Between Housings    `            10’6 3/4”
Stroke                            10”
Open Height                        17”
Closed Height                        7”
Throat Clearance                    8”
Speeds
Approach                        205 INCH PER MINUTE
Form                            15 - 58 INCH PER MINUTE
Return                            212 INCH PER MINUTE
Main Motor Horsepower                 35

EQUIPPED WITH

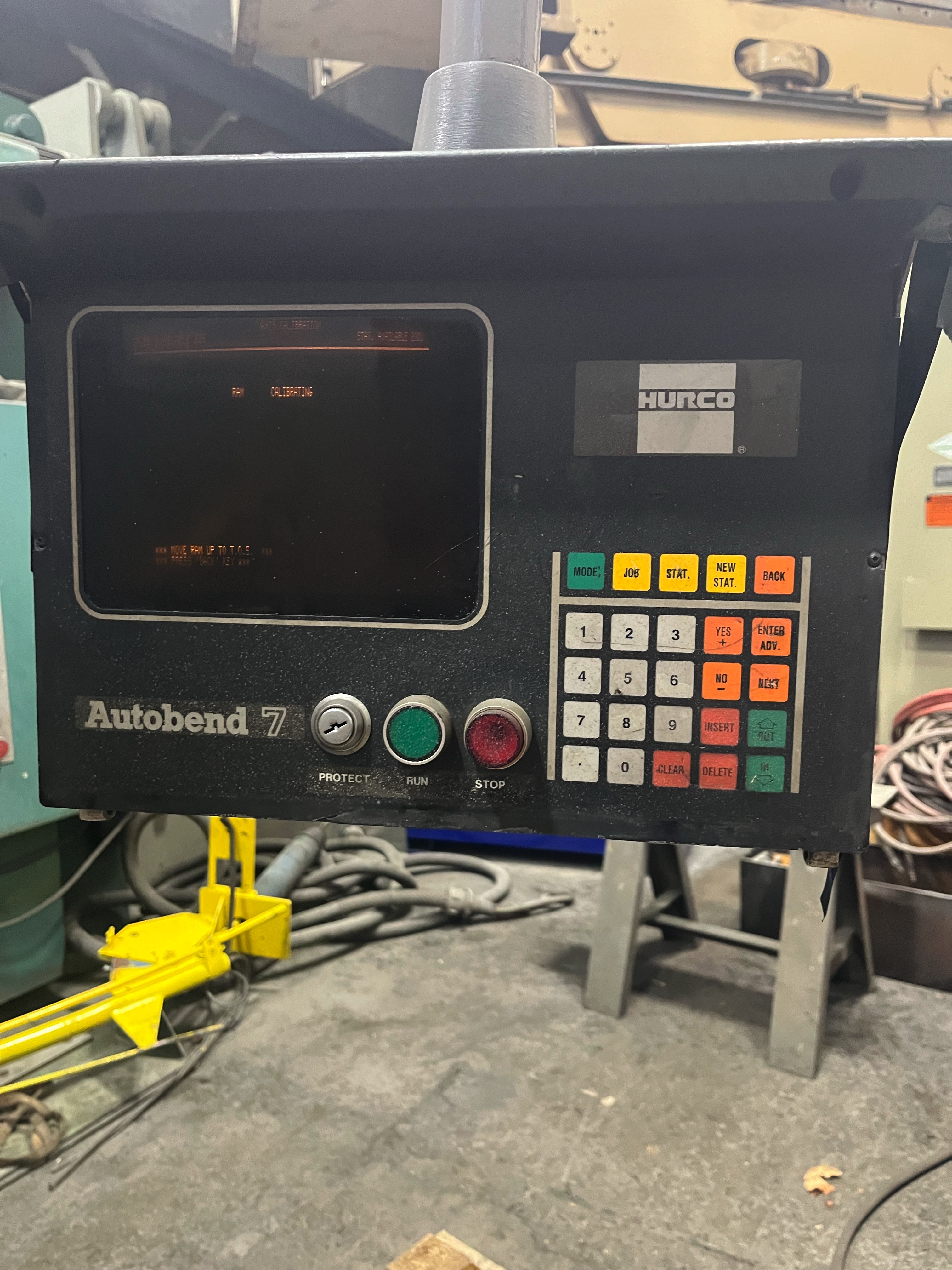

Hurco AB7 For Ram Control Only
Electric Foot Switch
Palm Button Station
Manuals
Interlocked Construction
Clevis Mounted Self Aligning Cylinders

Approximate Overall Weight
Approximate Overall Dimensions             148”L X 48”W X 132” H
