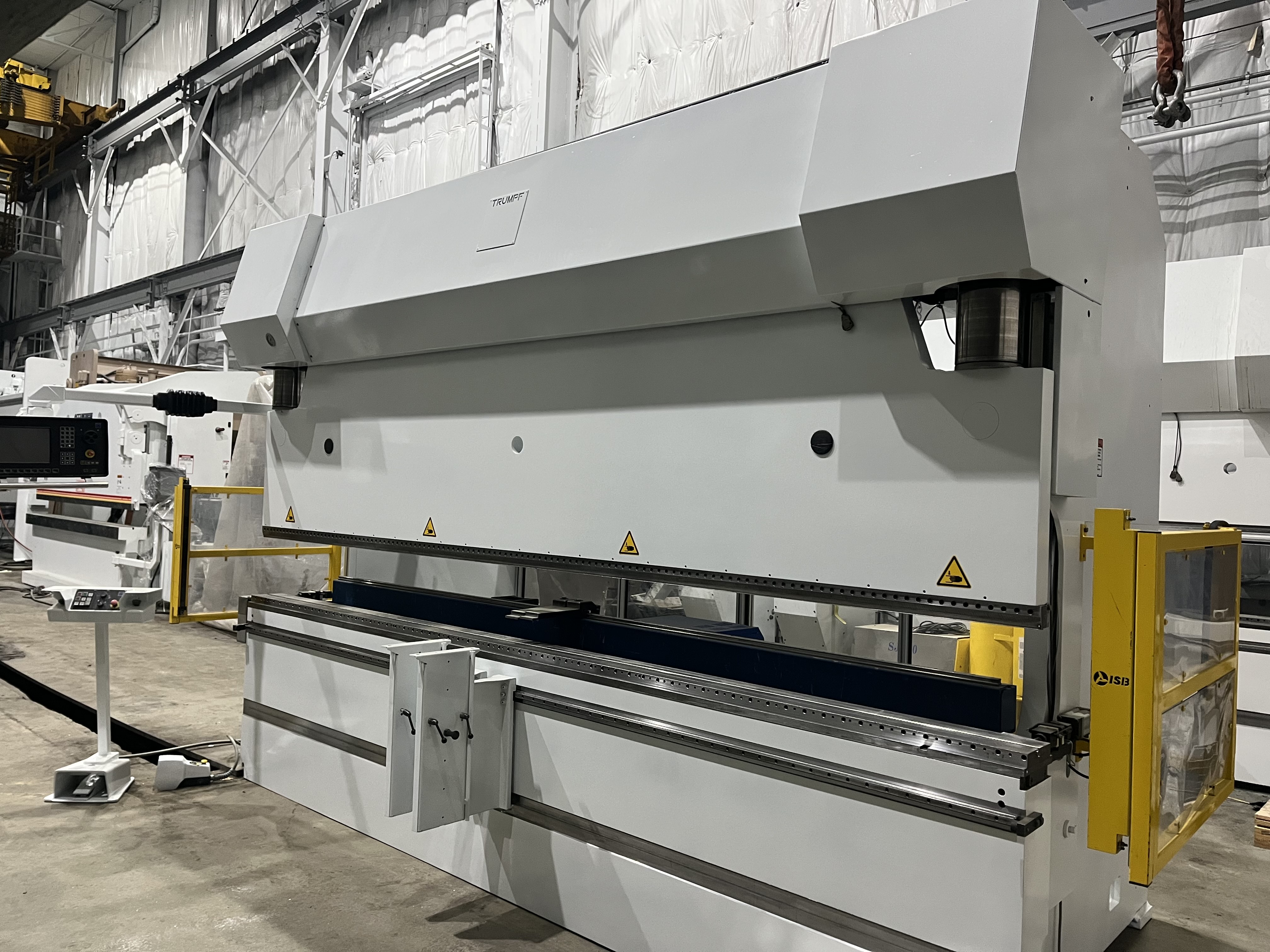

187 Ton X 13’ Trumpf V170 CNC Hydraulic Press Brake

Pre Owned Trumpf V170 CNC Hydraulic Press Brake

GENERAL SPECIFICATIONS

Capacity 187 US Tons

Overall Length of Bed and Ram 13’ 4”

Distance Between Housings 145”

Stroke 14.3”

Open Height 21”

Ram Inclination +/- 0.4”

Throat Clearance 16”

Speeds

Approach 480” Per Minute

Form 2-26” Per Minute

Return 320” Per Minute

Distance Floor to Top of Bed 41”

Oil Capacity 133 US Gallons

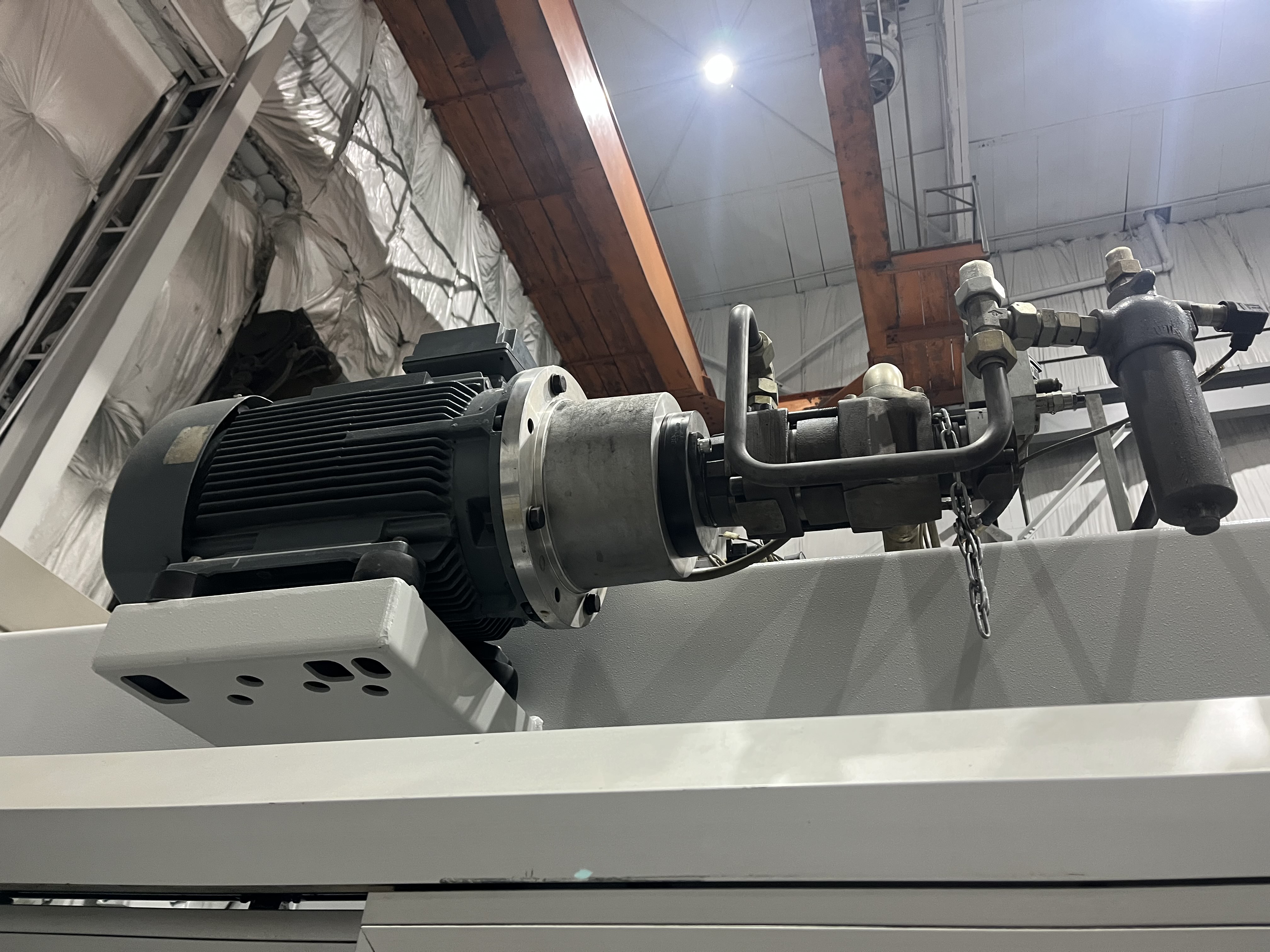

Main Motor Horsepower 28 230/460/3/60

CONTROL FEATURES

Trumpf Delem DA-65W  Multi-Axis Control (Y1,Y2,X , R, I )

Off Line Capable

Programmable Forming Speeds,Ram Opening,Reversal,Tonnage Control Diagnostics

Graphic Programming

 BACK GAGE FEATURES

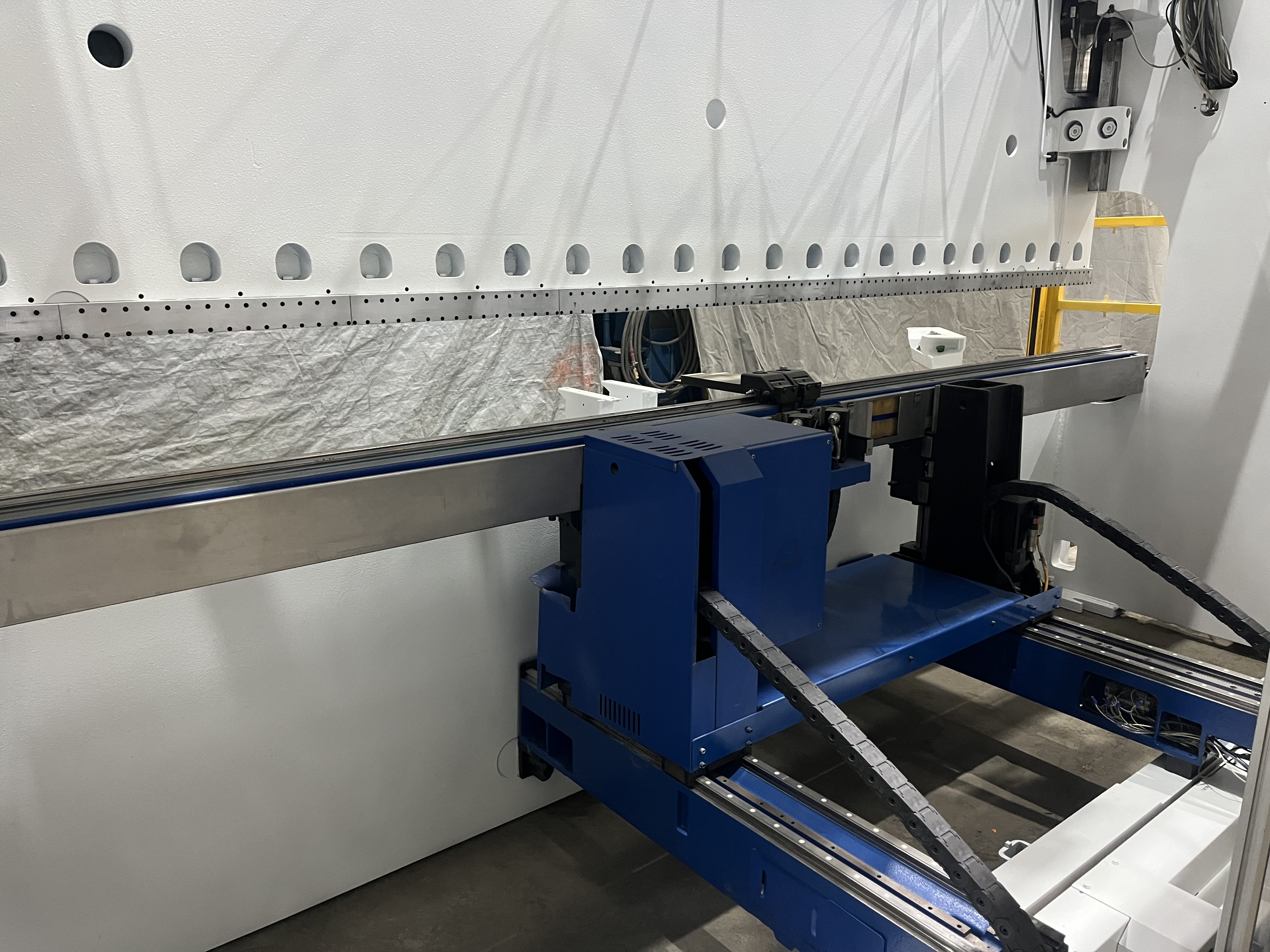

Trumpf 4 Axis Heavy Duty Backgauge

X-Axis   Max Distance     34.6”

Travel 19.6”

Max Speed 13” Per Min

R-Axis R1, R2

Travel 13.3”

Max Speed 3.9”

Z-Axis,   Z1, Z2,

EQUIPPED WITH

Automatic Crowning

I-Axis Die Shift

ISB Merlin Light Curtains

Ram Inclination in Y1 –Y2

Upper & Lower Hydraulic Tool Clamping

Precision Ram Leveling with Dual Linear Glass Scale Encoders

Approximate Overall Weight 39690 lbs.

Approximate Overall Dimensions 180” L X 90”W X 119” H
