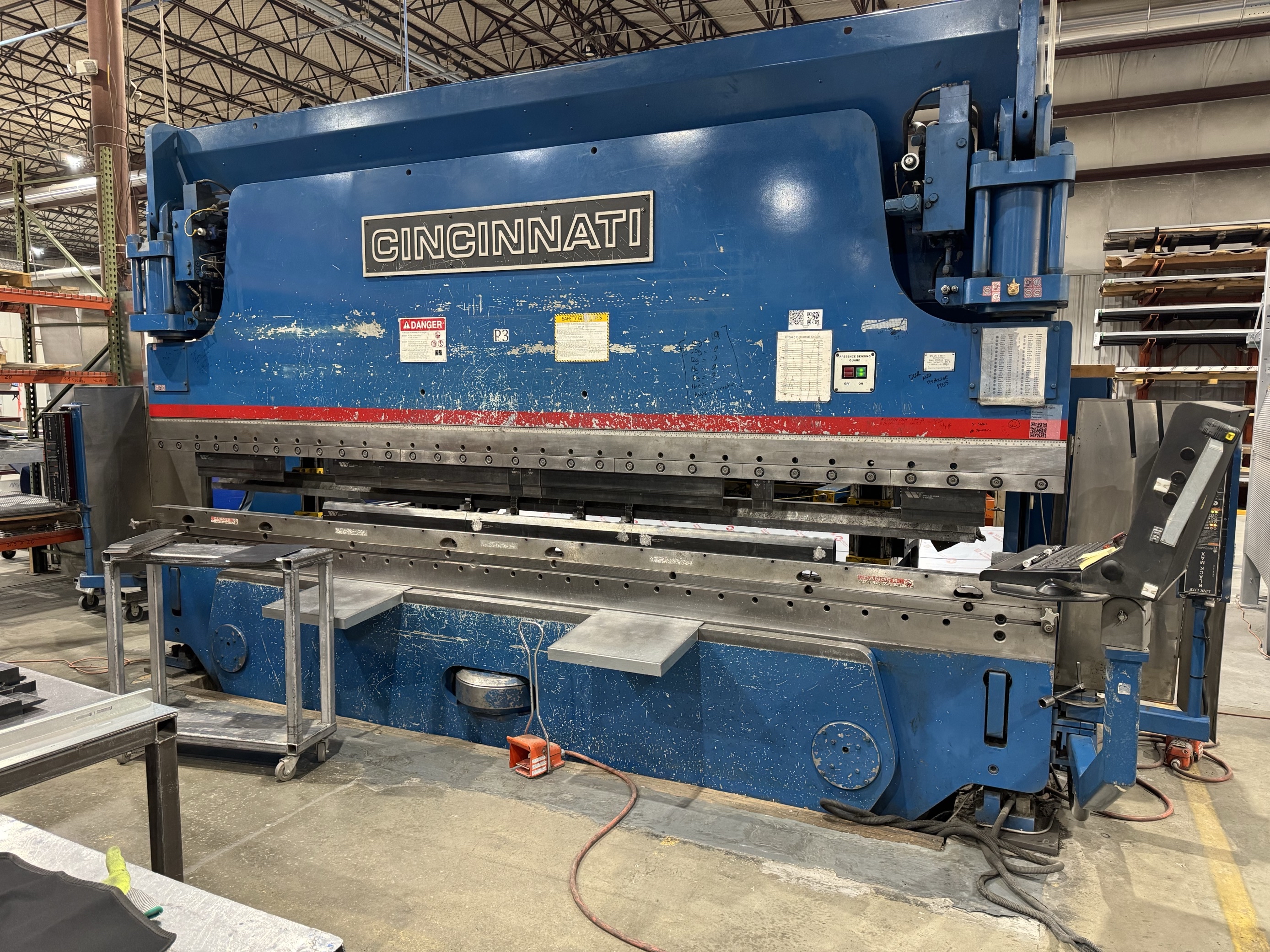

- Pre Owned Cincinnati Model 176AF14 Autoform plus CNC Hydraulic Press Brake
GENERAL SPECIFICATIONS
Capacity 175 TONS
Overall Length of Bed & Ram 16’
Distance Between Housings 14’ 6 1/2”
Stroke (extended) 16”
Open Height 17”
Closed Height 7”
Throat Clearance 12”
Speed
Approach 260 Inch/Minute
Form 1 to 65 Inch/Minute
Return 1 to 290 Inch/Minute
Width At Top Of Bed 4 1/2”
Main Motor Horsepower 25 HP 460/3/60
EQUIPPED WITH

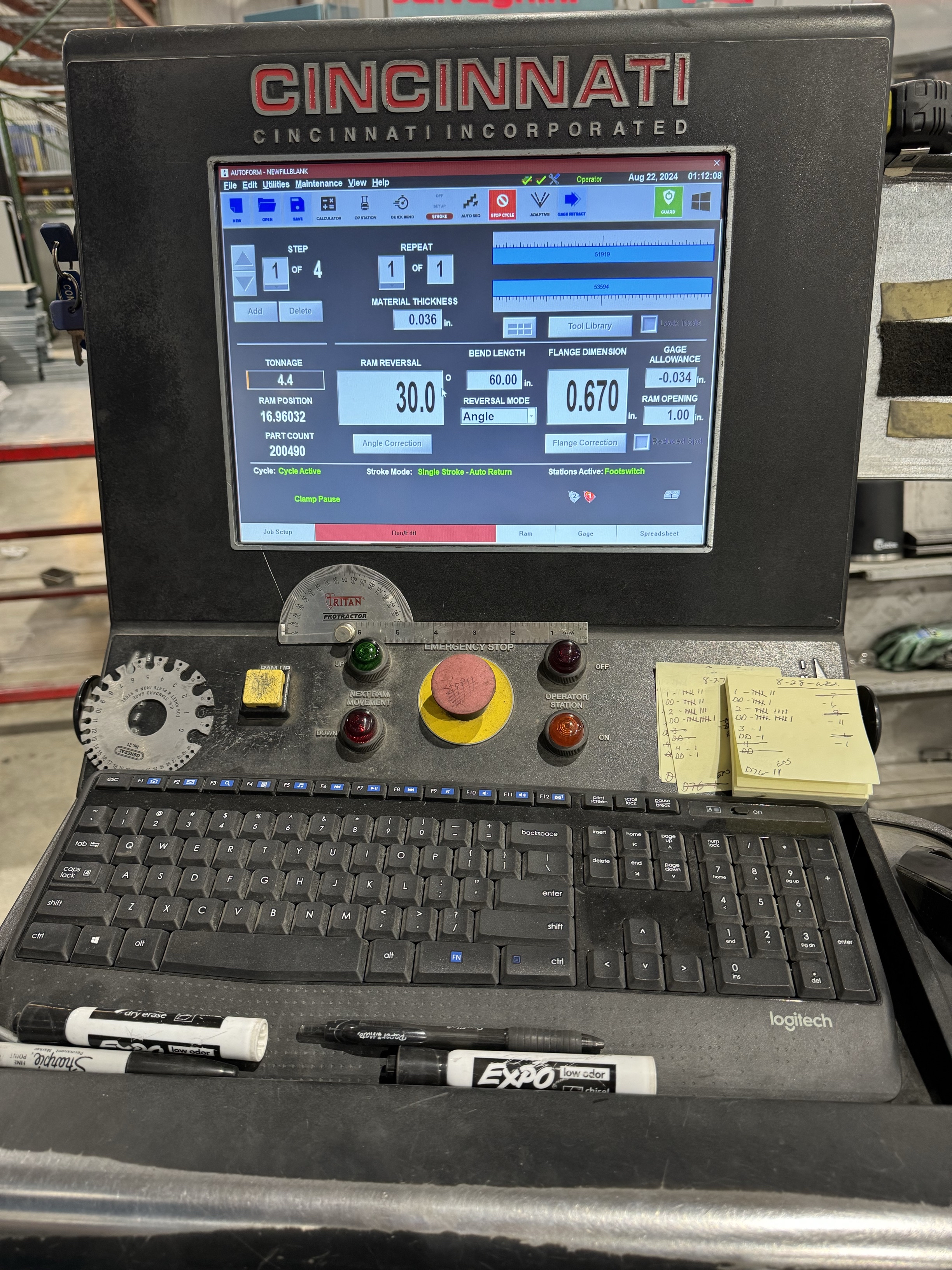

Cincinnati Human Machine Interface - Updated 2021
Industrial PC Based Control
17.1” TFT Touchscreen Display
Tool Library
CAD Design Software
Dynamic Thickness Compensation
Adaptive Control Mode

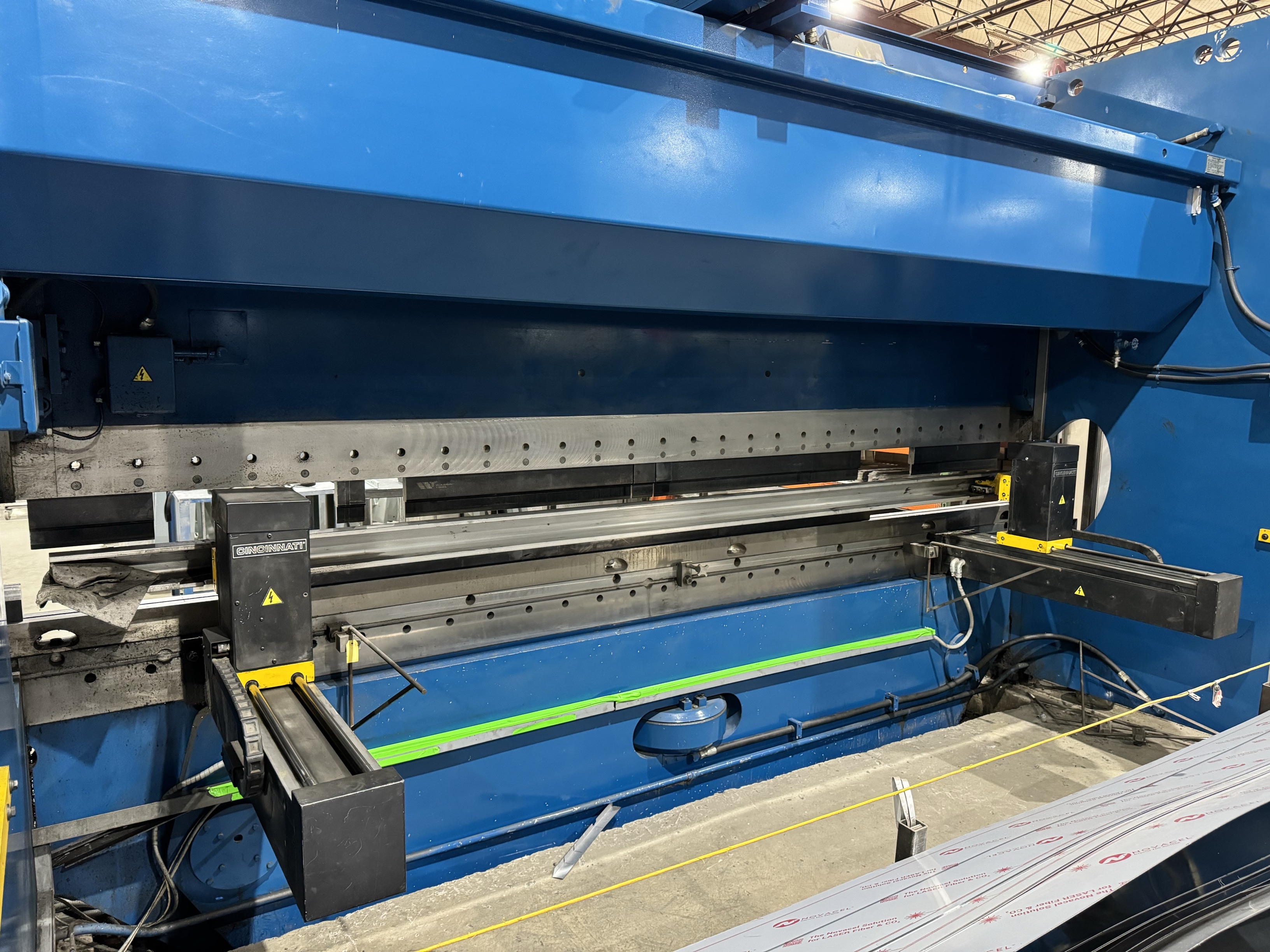

4-Axis Heavy Duty Back Gauge (X1, X2, R1, R2)
AutoCrown Deflection Compensation
Link Black Max Safety Curtains
Die Clamp Bolts on 6” Centers
Bed & Ram Machined and Drilled for 7 3/4” Angle Brackets
Precision Ram Leveling With Dual Linear Glass Scale Encoders
Off Load Center Compensation
Variable Volume Load Sensing Pump And Servo Hydraulic System
3-Position Electric Foot Switch
Control Mounted Palm Button Station
Manuals
Approximate Overall Weight 51500 Lbs
Approximate Overall Dimensions ” L X ” X ’ W
