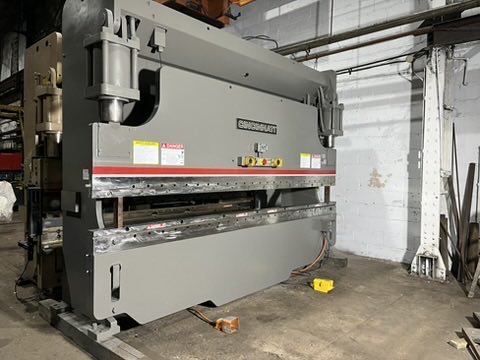

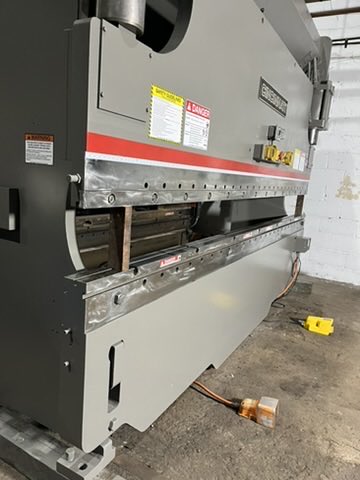

- Pre Owned Cincinnati Model 175CB CNC Press Brake
GENERAL SPECIFICATIONS
Capacity 175 TONS
Overall Length of Bed & Ram 14’
Distance Between Housings ` 12’6 3/4”
Stroke 10”
Open Height 17”
Closed Height 7”
Throat Clearance 8”
Speeds
Approach 180 Inch Per Minute
Form 8-16-40 Inch Per Minute
Return 200 Inch Per Minute
Width at Top of Bed 4 ½”
Main Motor Horsepower 15
EQUIPPED WITH
Electric Foot Switch
Palm Button Station
Manuals
Interlocked Construction
Clevis Mounted Self Aligning Cylinders
Approximate Overall Weight 29500 Lbs
Approximate Overall Dimensions 14’6.5” L X 60”FB X 123” H
