12" X 10 1/4" 1994 Daito GA 260W Semi Automatic Band Saw

PrintEmail
12" X 10 1/4" 1994 Daito GA 260W Semi Automatic Band Saw

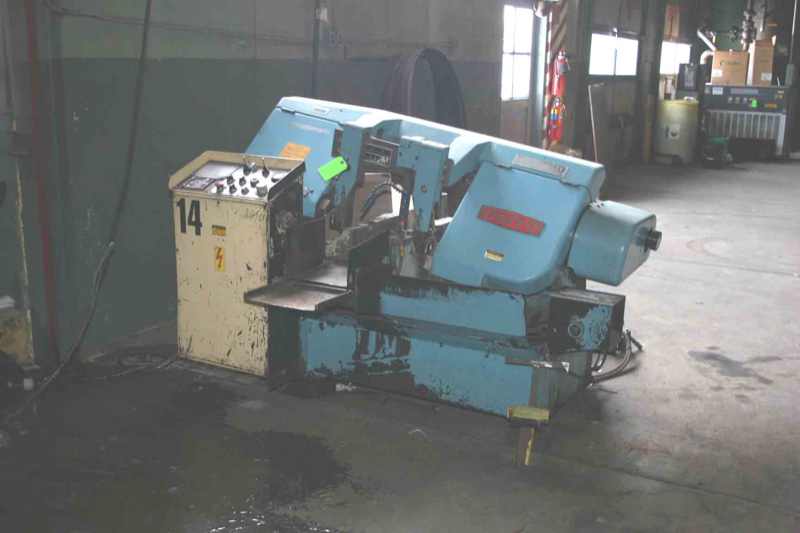

daito ga260w 94 front
daito ga260w 94  rear
daito ga260w 94 control
daito ga260w 94 control5
Description

Pre Owned 1994 Daito GA 260W Semi Automatic Band Saw
Serial Number:151KY4-4

General Specifications
Blade Size                     0.0035” X 1” X 11’6”
Cutting Capacities                 10 ¼”
    Rounds                 10’ ¼”
    Flats                     12” X 10 ¼”
    Bundles                 12” X 4”
Blade Speeds (Variable)            66 – 525 Per Minute
Max Workload                 5500 Lbs
Saw Wheel Diameter                 17”
Feeding Stroke
    Single                     16”
    Multiple                 32’9 ¾”
Motor
    Blade                     5 HP
    Hydraulic                 1 HP
    Coolant                 1/12 HP
    Chip Conveyor             1/30 HP
Hydraulic Reservoir Capacity         10.6 Gallons
Coolant Reservoir Capacity             21 Gallons

EQUIPPED WITH
Digital controls with self diagnostics
rake type jam resistant Scrap Conveyor
Infinitely Variable Downfeed Pressure
Safety guard covers blade will sawing
vise pressure regulator for thin tube cutting
Adjustable Coolant System
Manual Trigger for operation of saw
Hydraulic P.S.I gauge

 Made in Japan

Approximate Overall Dimensions        75 1/4” W X 62 1/4”D  X 39 3/4” H
Approximate Overall Weight             2750 LBS
