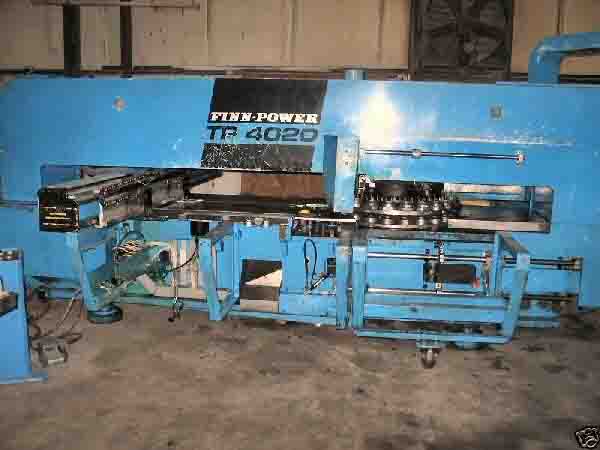

FINN POWER TP 4020 HYDRAULIC TURRET PUNCH

Description

(1) PRE OWNED 1992 FINN POWER TP 4020 HYDRAULIC TURRET PUNCH

MAXIMUM SHEET SIZE (WITH REPOSITIONING)            120” X 60”
Maximum traverse (No Repositioning)                78.7” x 60”
PUNCHING CAPACITY                         33 US TONS
MAXIMUM HITS PER MINUTE
        NIBBLING                         570 HPM
        ON 1” CENTERS                    315 HPM
MAXIMUM POSITIONING SPEED                    2795 INCHES PER MINUTE
TURRET CONFIGURATION
21 Individual (Total of 48 Tools with MT-20 and MT-8)
(1) MT-20 Cassette
(1) MT-8   Cassette
(10) 1.25” Stations (2 Auto-Index)
(4)   2.0” Stations (1 Auto-Index)
(5)   3.5” Stations (3 Auto-Index)
Tool Change Time-1.3-3secs
auto index configuration
    Max Tool Rotation (Auto-Indexing)-40rpm .001 Degree Increments
TURRET SPEED                             20 RPM
AXIS SPEED
    X-AXIS                                 2921”/MIN
Y-AXIS                                2362”/MIN
MAXIMUM SHEET WEIGHT                         440 LBS
MAXIMUM MATERIAL THICKNESS                    0.315 MS
AIR REQUIREMENT                             80 PSI
MAIN MOTOR HORSEPOWER                        5.5 kW

EQUIPPED WITH
SIEMENS SEMINUMERIK 3M-4C
    128K PROGRAM MEMORY
    Rs-232 interface
AUTO REPOSITIONING
PUNCHING STROKE, DEPTH, LENGTH AND RAM SPEED ARE FULLY PROGRAMMABLE
BALL TRANSFER TABLE
SCRAP / SLUG CONVEYOR
SHEET OUT OF CLAMP SENSORS
3 PROGRAMMABLE WORK CLAMPS

APPROXIMATE OVERALL DIMENSIONS                9’ W X 7’H X 16’ L
APPROXIMATE OVERALL WEIGHT                     21,400 LBS
