Pre Owned 1992 Amada Apelio / Pega 357 CNC Turret Punch

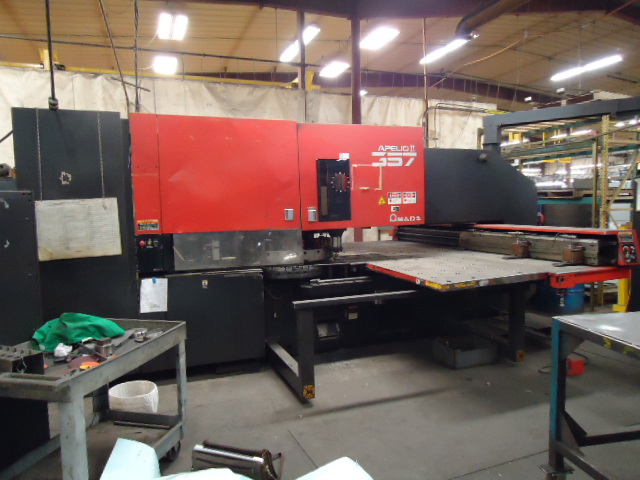

amada apelio pega 1992 side 1

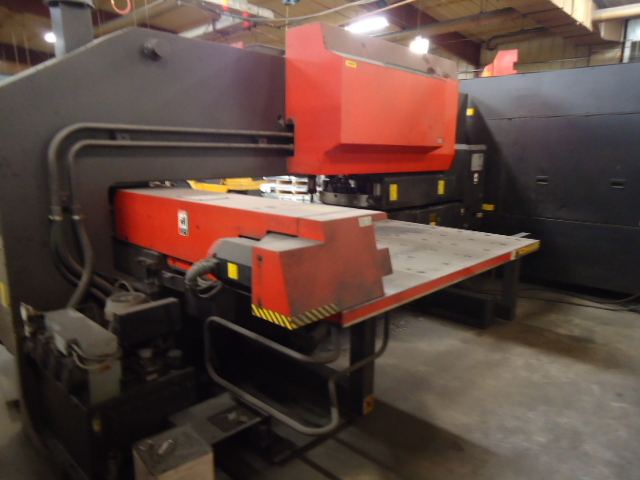

amada apelio pega 1992 back
amada apelio pega 1992  tag

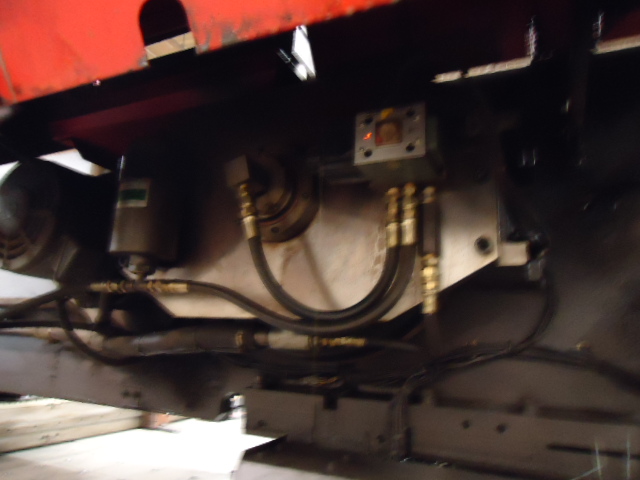

amada apelio pega 1992 clutch

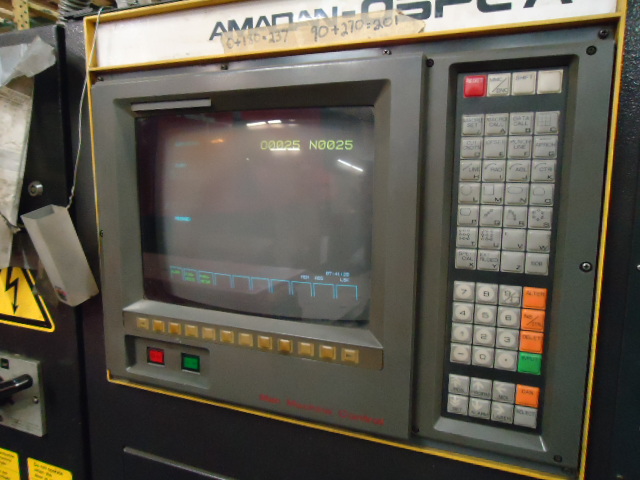

amada apelio pega 1992  control
Description   Serial Number AP2357F10   GENERAL SPECIFICATIONS Maximum Traverse 50” X 72”
Maximum Sheet Size (With Repositioning) 50” X 144” Maximum Punching Capacity (Mild Steel) ¼” Maximum Hits Per Minute 350 Maximum Sheet Weight 220 LBS Maximum Positioning Speed 2795 Inches Per Minute Total Tool Stations in Turret 58 Turret Configuration- H-Type Thick Turret 36 @ 1/2" Dia
12 @ 1-1/4" Dia.
4 @ 2" Dia.
2 @ 3-1/2" Dia.
2 @ 4-1/2' Dia.
2 @ Auto Índex (1-1/4" DIA.) auto index configuration Angular Increment 0.01 Degree Maximum Nibbling Angle 8 Degree B—Directional Rotation AC Servo Drive 60 RPM Turret Speed 30 RPM Air Requirement 80 PSI Main Motor Horsepower 5.5 kW   EQUIPPED WITH GE Fanuc 05PLA Control Auto Repositioning Hydraulic Clutch & Brake Ball Transfer Table *laser not functional / machines as a punch Approximate Overall Dimensions 9’ W X 7’H X 16’ L Approximate Overall Weight 30,400 LBS
