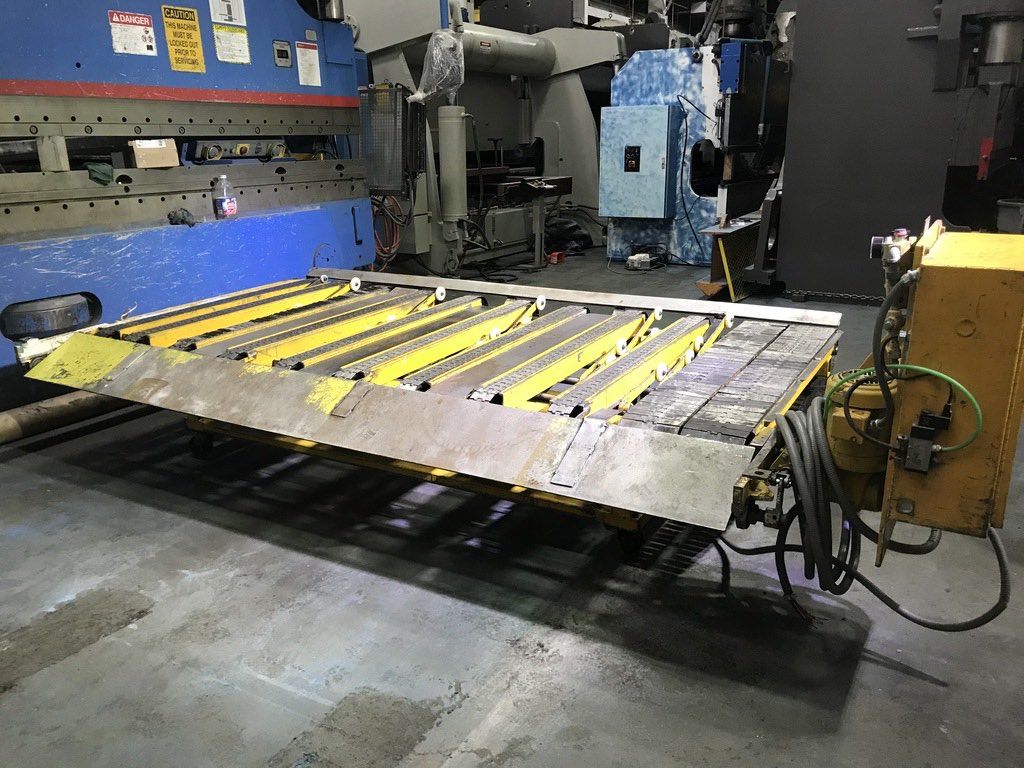

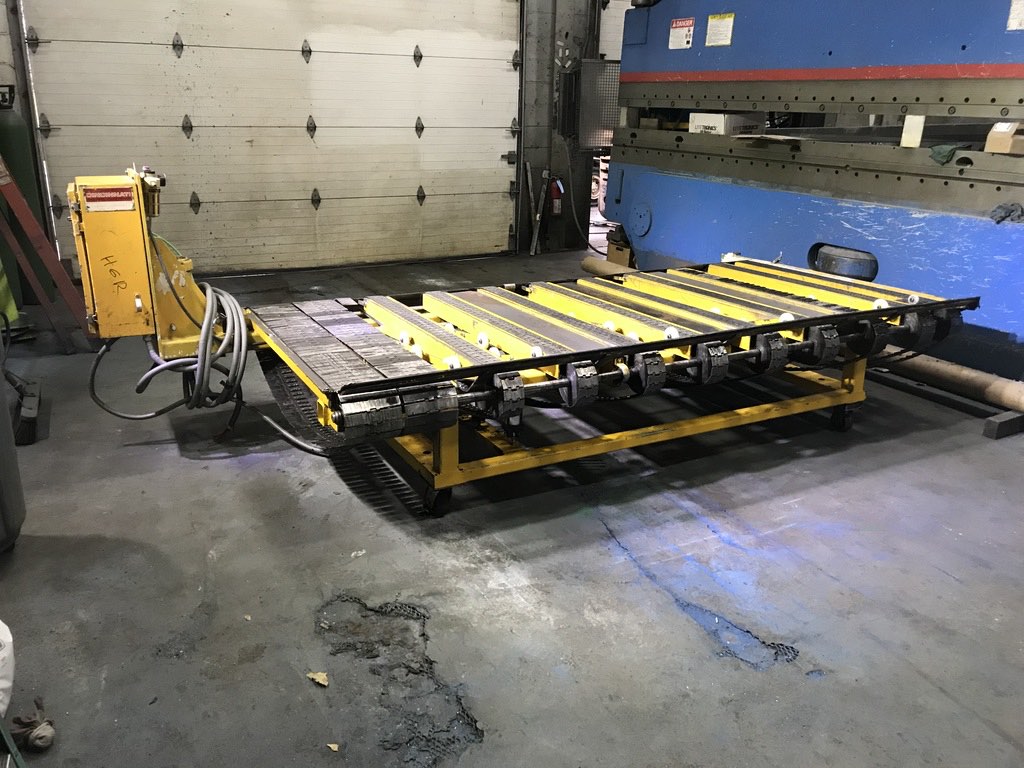

Cincinnati 2CV10 Shear Conveyor

 Pre Owned Cincinnati 2CV10 Shear Conveyor
Serial Number 44021

GENERAL SPECIFICATIONS:
Capacity (Mild Steel)                            1/4”
Conveyor Height         24”
Width required under shear        10’
Number of Steel Belts                            11
Material Support Range                         48”
Minimum Material Thickness                         20 Ga
Shear Passline Required                         32”
Conveyor Speed                             1800 IPM
Main Drive Motor                            2 HP 230/460/3/60

EQUIPPED WITH:

Scrap Separator
Dual over width belts on left  Side

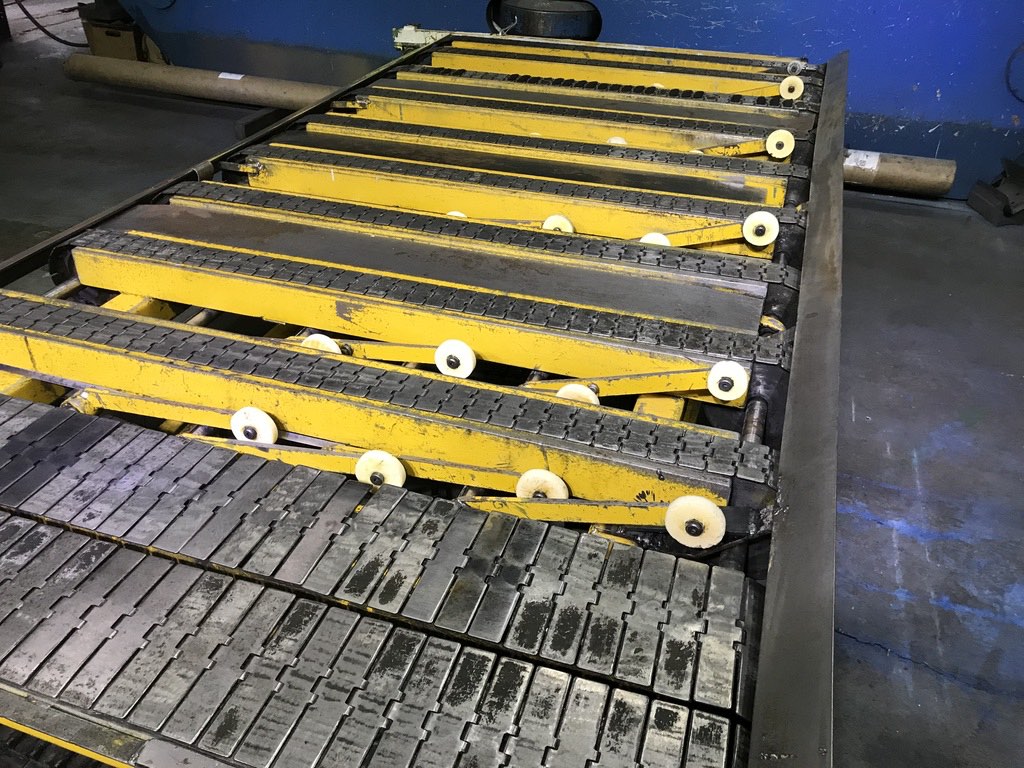

4 Rows of Material Supports with Poly Rollers
Approximate Overall Weight    2750 Lbs
Approximate Overall Weight                     11” L X 6”W X 38” H
