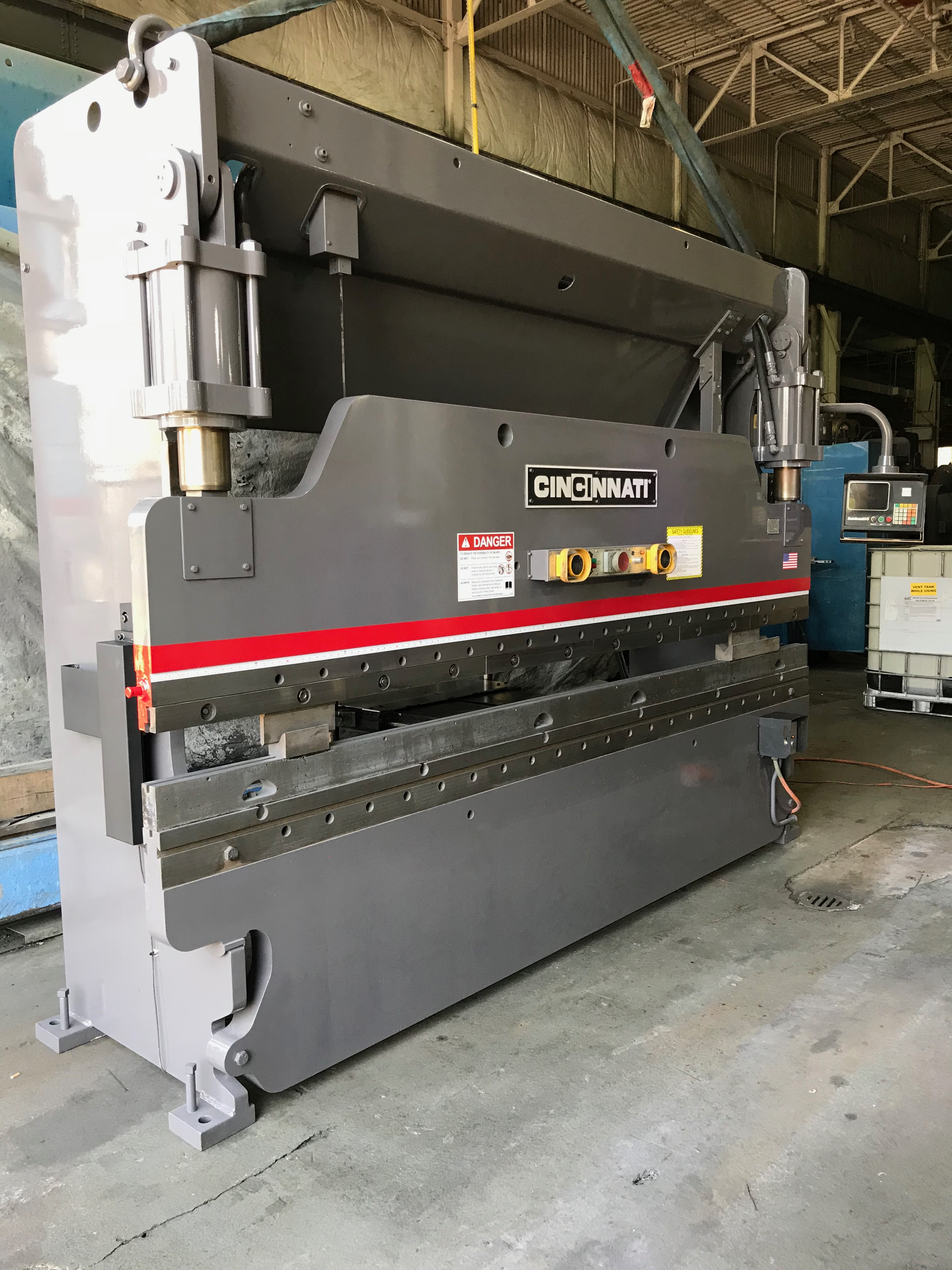

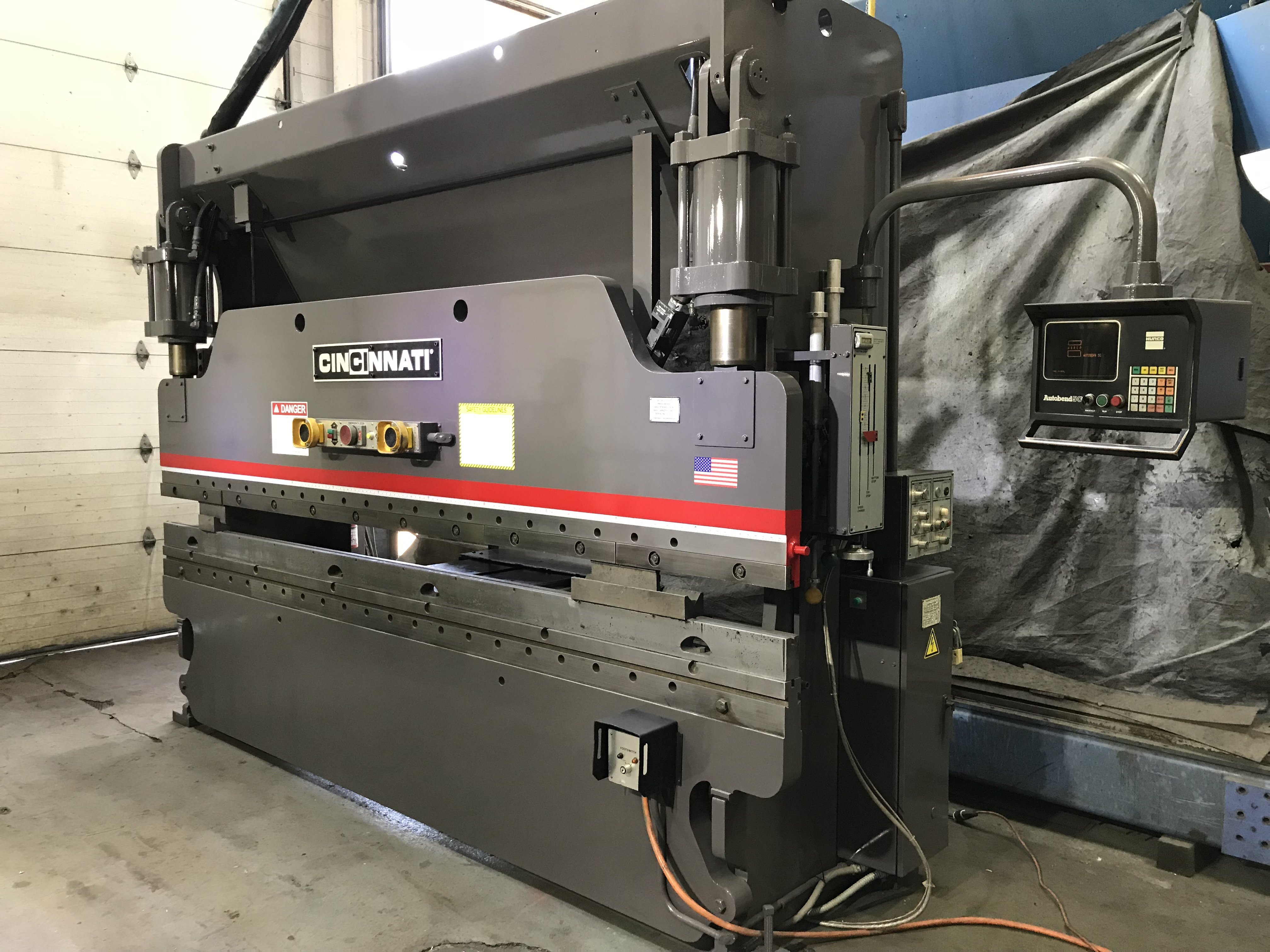

90 Ton X 12' Cincinnati Model 90CB CNC Press Brake

Pre Owned Cincinnati Model 90CB CNC Press Brake
Serial Number 449987

GENERAL SPECIFICATIONS
Capacity                         90 TONS
Overall Length of Bed & Ram                12’
Distance Between Housings    `            8’6 3/4”
Stroke                            8”
Open Height                        15”
Closed Height                        7”
Throat Clearance                    7”
Speeds
Approach                    260 Inch Per Minute
Form                        10-20-80 Inch Per Minute
Return                        280 Inch Per Minute
Width at Top of Bed                    3 ½”
Main Motor Horsepower                15

EQUIPPED WITH

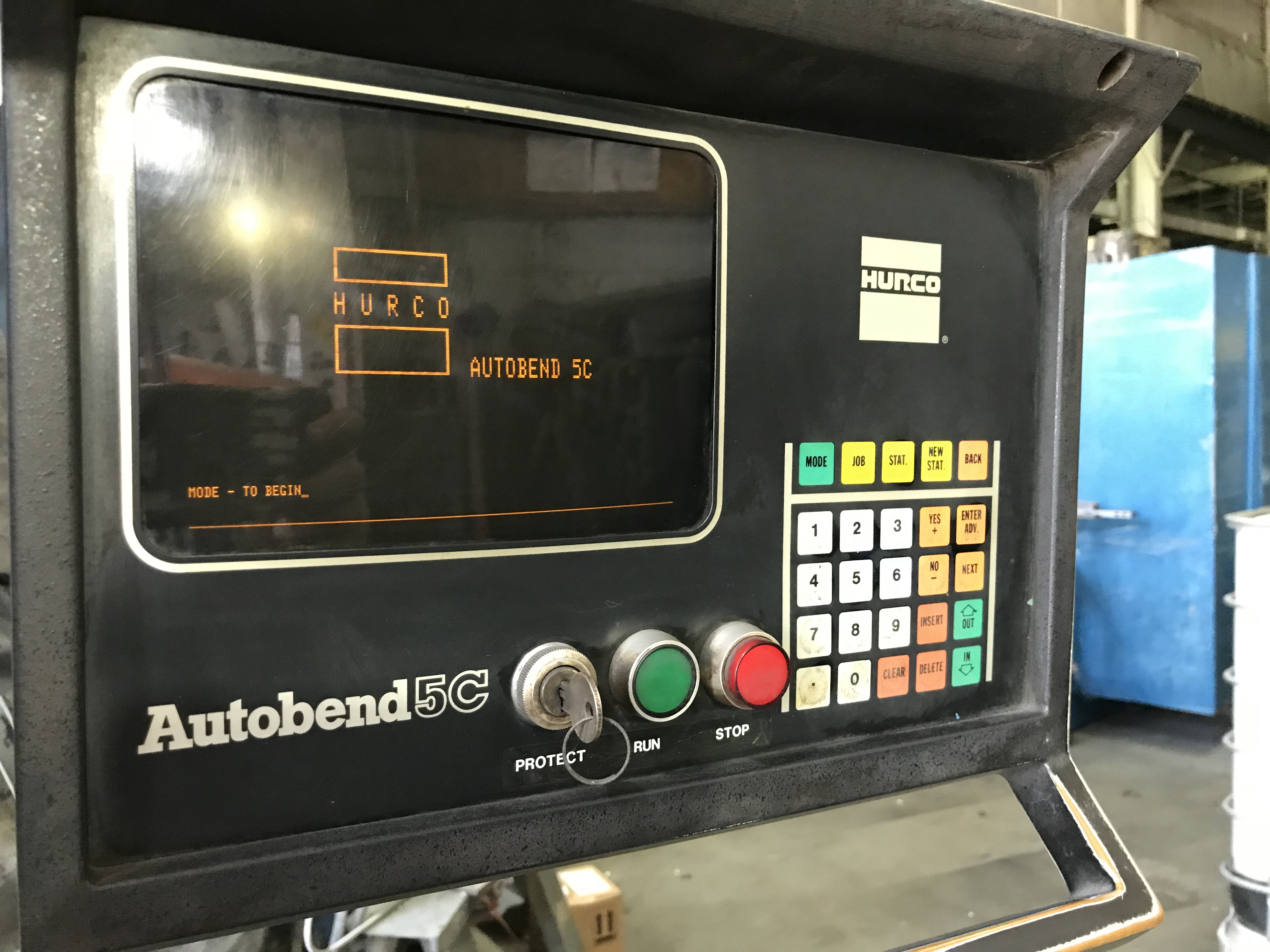

Hurco Autobend 7 2-Axis Narrow Filler Block
Electric Foot Switch
Manuals
Interlocked Construction
Clevis Mounted Self Aligning Cylinders

Approximate Overall Weight                 19500 Lbs
Approximate Overall Dimensions             12’6.5” L X 50”FB X 110” H
