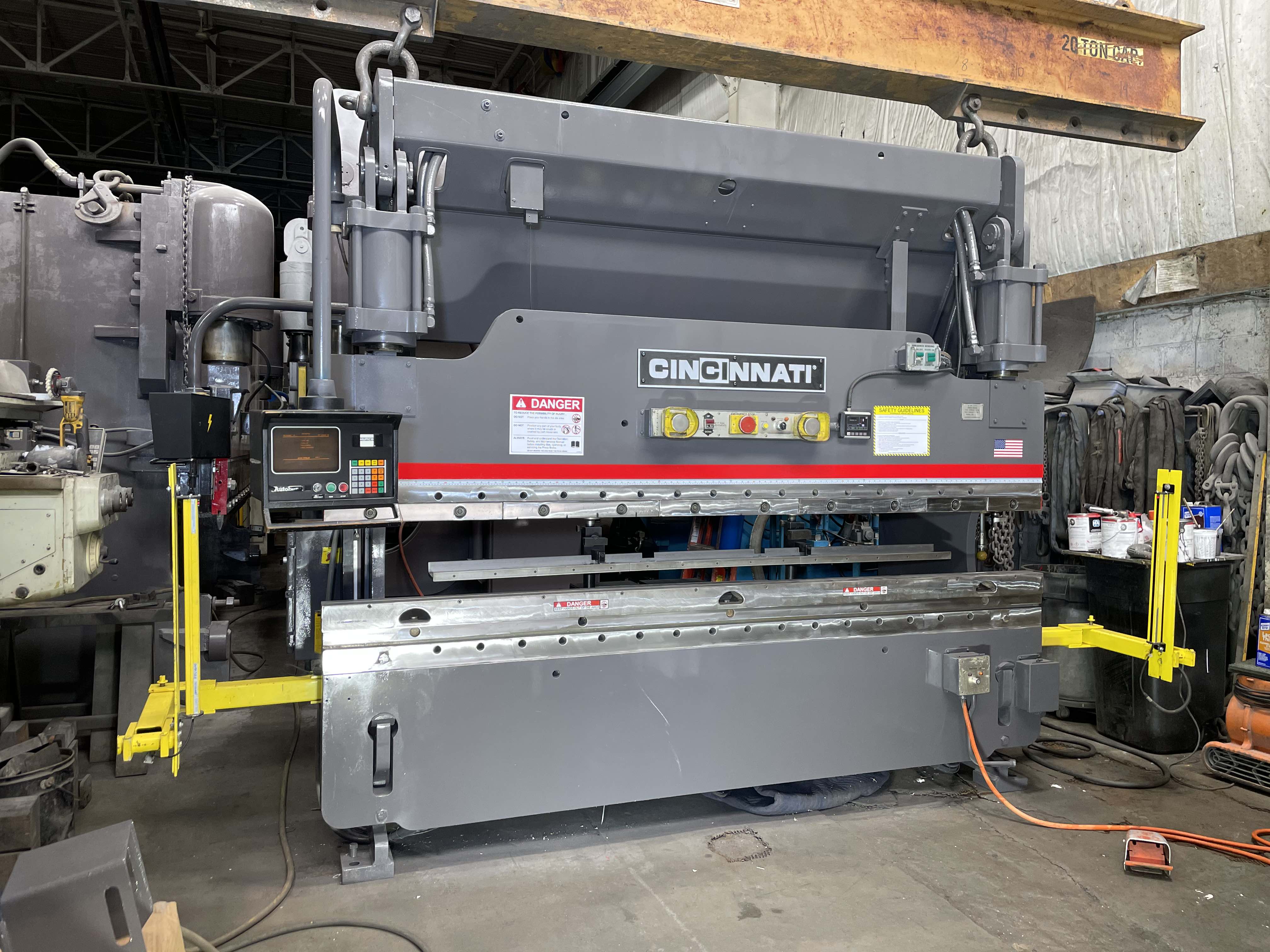

90 Ton X 10' Cincinnati Model 90CB Hydraulic Press Brake

Pre Owned Cincinnati Model 90CB Hydraulic Press Brake
Serial Number 48147                New 1994

GENERAL SPECIFICATIONS
Capacity                         90 TONS
Overall Length of Bed & Ram                10’
Distance Between Housings    `            8’6 3/4”
Stroke                            8”
Open Height                        15”
Closed Height                        7”
Throat Clearance                    7”
Speeds
Approach                    260 Inch Per Minute
Form                        10-20-80 Inch Per Minute
Return                        280 Inch Per Minute
Width at Top of Bed                    3 ½”
Main Motor Horsepower                15

EQUIPPED WITH

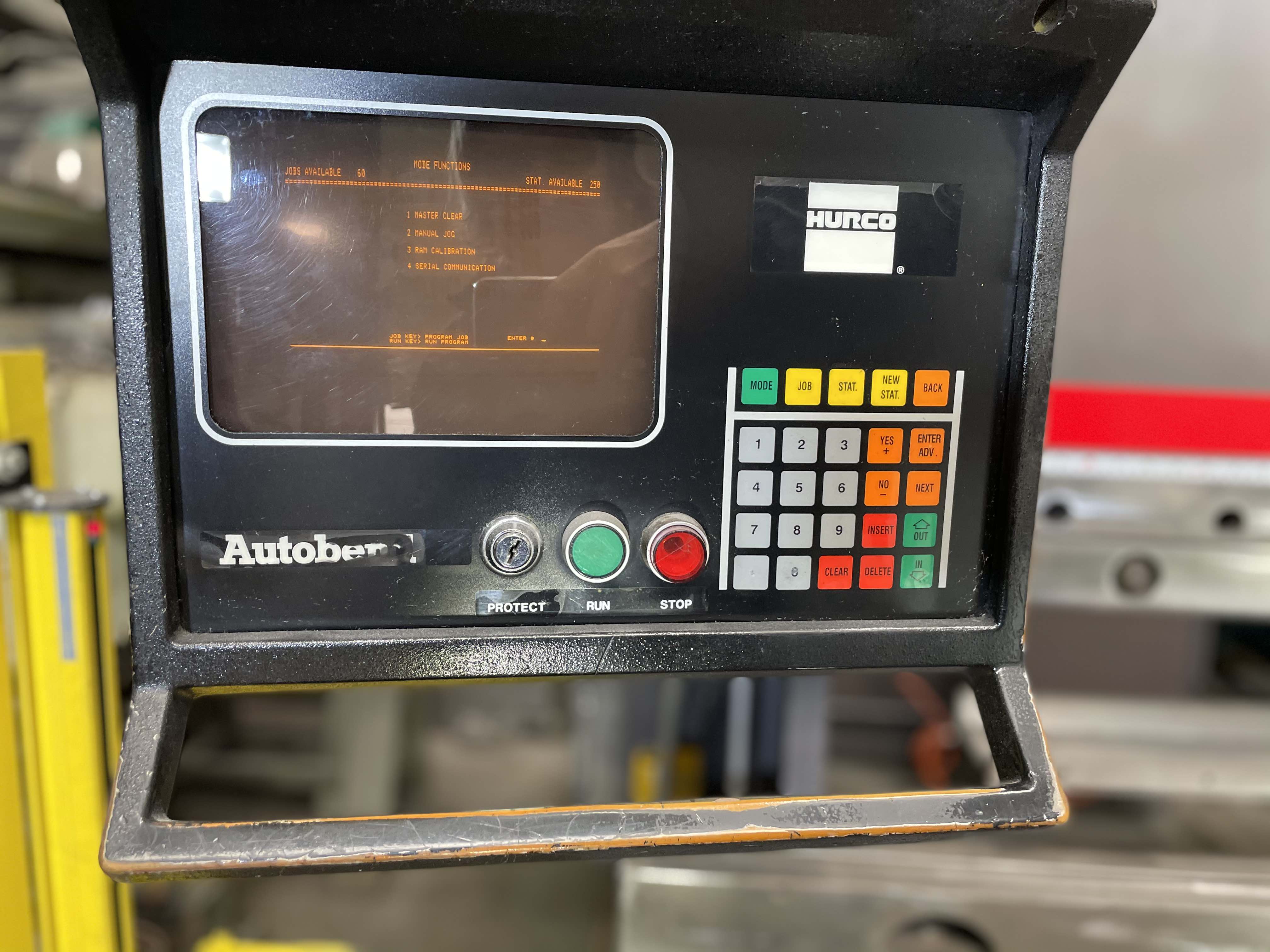

Hurco Autobend 2 Axis Back Gauge
Pinnacle / Lazsesafe Safety Curtain System
Variable Tonnage
Filler Block
Electric Foot Switch
Manuals
Interlocked Construction
Clevis Mounted Self Aligning Cylinders

Approximate Overall Weight                 16500 Lbs
Approximate Overall Dimensions             12’6.5” L X 50”FB X 110” H
