200 Ton X 12' 2007 Piranha Pro 2 CNC Hydraulic Press Brake

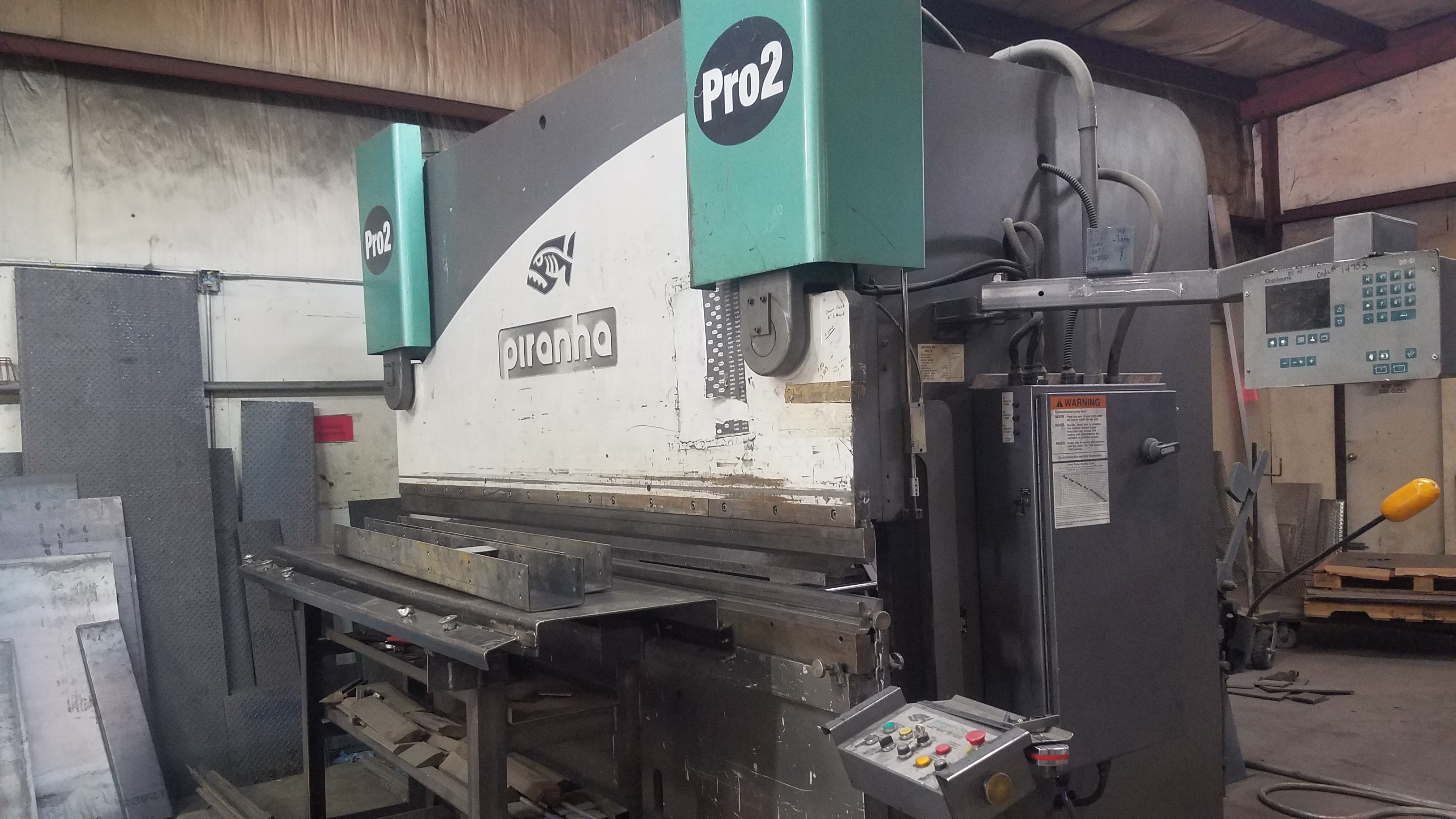

(1)Pre Owned 2007 Piranha Pro 2 CNC Hydraulic Press Brake

GENERAL SPECIFICATIONS
Tonnage Capacity:                        200 US Tons
Overall Length of Bed & Ram:        12’
Distance Between Housings:            10’4”
Stroke:                                        8"
Open Height:                                14"
Closed Height:                                6"
Speeds
    Approach             210 IPM
    Form                 25
    Return                225
Throat Depth:                                10"
Main Motor Horsepower            20 240/480/3/60

Equipped with
Delem DA 51 CNC Control
Y1, Y2 Ram Positioning

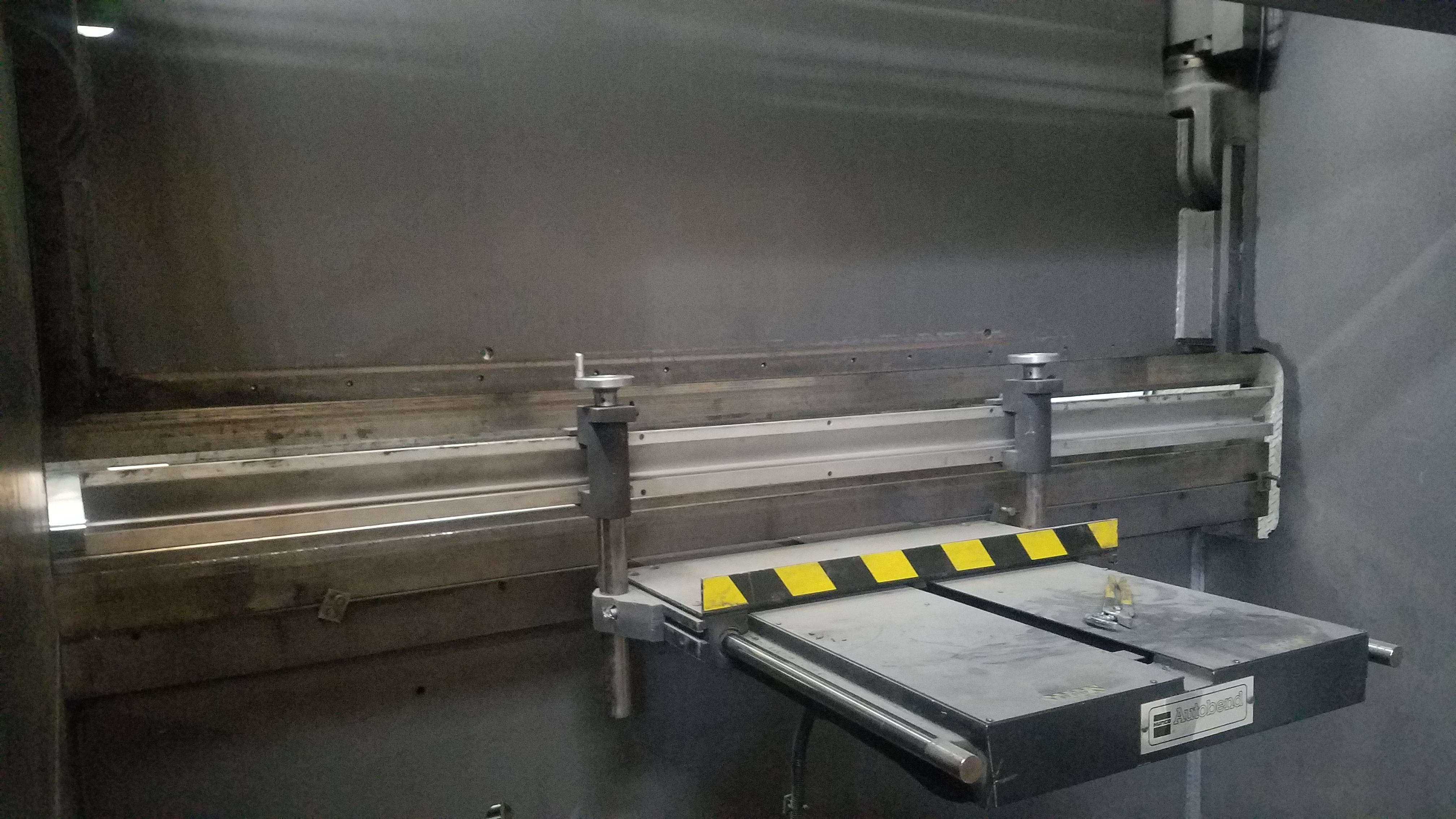

Hurco Back Gauge
Sectional Ram Clamps
Electric Foot Switch / Palm Button Station

Overall Dimensions Approx.156” L X 84” W X 109” H
Approximate Overall Weight  21,500 Lbs
